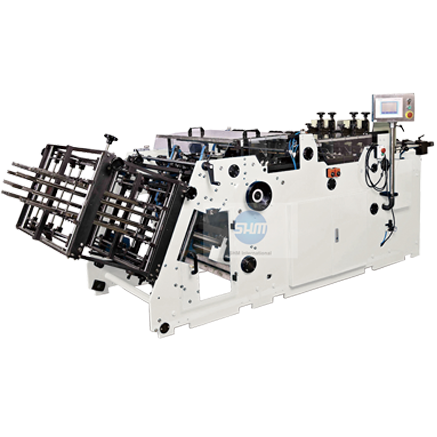

L800-A/L800-C/L1000/2-A/L1000/2-B Carton Erecting Machine
MAIN FEATURES:
The differences between L800-A and L800-C: 1. L800-A adopts servo system to control the punching head,but L800-C adopts mechanical device to control the punching head,so L800-A is easier to change different box than L800-C.
The differences between L800-A and L800-C: 2. L800-A is better to make eight corners boxes than L800-C.
The differences between L1000/2-A and L1000/2-B: 1. L1000/2-A only can make the same box on the two lanes at the same time.
The differences between L1000/2-A and L1000/2-B:2. L1000/2-B can make the different box on the two lanes at the same time.
MAIN SPECIFICATIONS:
| Model | L800-A | L800-C | L1000/2-A | L1000/2-B |
| Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Covering area | 4000x1200mm | 4000x1200mm | 4000x1400mm | 4000x1400mm |
| Total power | 8kw | 5kw | 8kw | 8kw |
| Max production speed | 200pcs/min | 200pcs/min | 400pcs/min | 400pcs/min |
| Air pressure | 0.6Mpa (Dry and clean compressed air) | |||
| Packing | 2980x1560x1320mm, N.W.1500kg, G.W.1600kg; 1310x1170x900mm, N.W.250kg, G.W.290kg | 2960x1520x1520mm, N.W.1800kg, G.W.2200kg; 1360x1360x870mm, N.W.350kg, G.W.450kg | 2660x1700x1560mm, N.W.1800kg, G.W.2200kg; 1360x1100x1150mm, N.W.350kg, G.W.450kg | |
| Materials | Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5mm. | |||
| Blank length (L) | 100-450mm | 100-450mm | 100-450mm | 100-450mm |
| Blank length (B) | 100-680mm | 100-680mm | 100-450mm | 100-450mm |
| Side flaps height (H) | 15-260mm | 15-260mm | 15-260mm | 15-260mm |
| Side flaps height+lid (H1) | 15-260mm | 15-260mm | 15-260mm | 15-260mm |
| Conicity | 5-40° | 5-40° | 5-40° | 5-40° |
