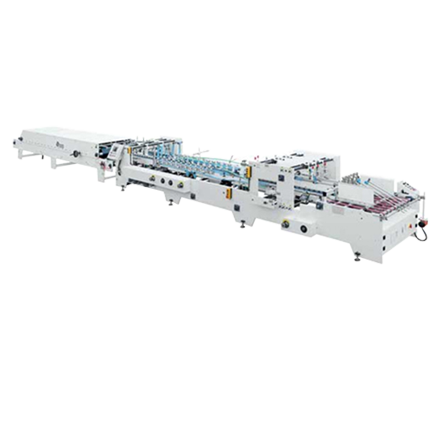

ZH-880FT Folder Gluer
MAIN FEATURES:
1. The machine adopts strengthened single-side driving system, for steady running and easy maintenance.
2. The motor adopts infinitely variable speed drive with power saving.
3. Delivery part adopts several thick belts with shaking motor to ensure paper feeding in continuous, exact and automatic.
4. It has a grinder in each side, which makes the glue more stable, firmly.
5. The machine is controlled by infrared photoelectric. It has automatic counting function.
6. The special boxes of size 35mm molded by 2-fold is also available.
MAIN SPECIFICATIONS:
| Line speed | 180m/min , Continuous adjustment |
| Suitable paper | 200-400 g/ms, paperboard, E & B flute |
| Box forming | Straight line box |
| Fold method | 2nd & 4th folds molded at 180° |
| Paper feeding | Automatic feeding, grinding unit |
| Power | 2.4kw |
| Dimension | 7300x1060x1300mm |
| Weight | 1800kg |
