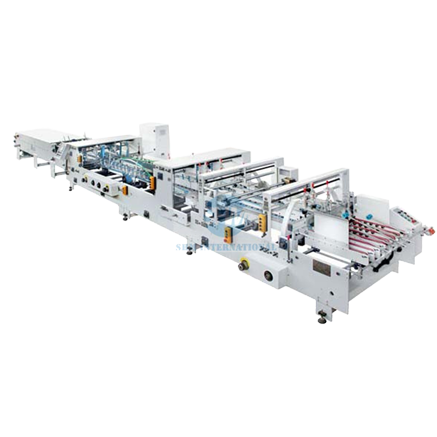

1. The machine adopts strengthened single-side driving system, for steady running and easy maintenance.

2. The motor is controlled by transducer, with automatic timing, stable running and energy efficiency.

3. Paper feeding is controled by several thick belts with vibration motor, which ensures feeding in continuous, exact and automatic.

4. Grinding equipment in both sides of machine makes gluing more stable and firm.

5. There are two groups of gluing bucket at up and down, and tooth rods adjustment at left and right. Easy to operate.

6. The machine adopts PLC touch screen by human interface control, remote diagnosis and maintenance system (remote controller system for optional), photoelectric to control speed in pressing part.

7. Delivery part is equipped with sponge pressing belts to ensure products perfect.

8. The machine can do 2-folding and 4-folding for bottom lock. In the pre-folding part, the first fold and the third fold can changed to 180°or 90°. The second fold and the fourth fold are molded in 180°. The special design is available.

9. Special design for special box like width at 30mm is available.

Model	ZH-880BFT	ZH-1200BFT	ZH-1400BFT	ZH-1600BFT	ZH-1800BFT
Speed	200m/min
Suitable	200-450g	260-700g	350-800g
Power	6.7kw	9kw	13.2kw	17.2kw	22kw
Weight	3200kg	4600kg	5300kg	6200kg	7000kg
Dimension	9000x1100x1200mm	12000x1500x1500mm	13000x1700x1500mm	13000x2100x1500mm	15000x2300x1600mm
