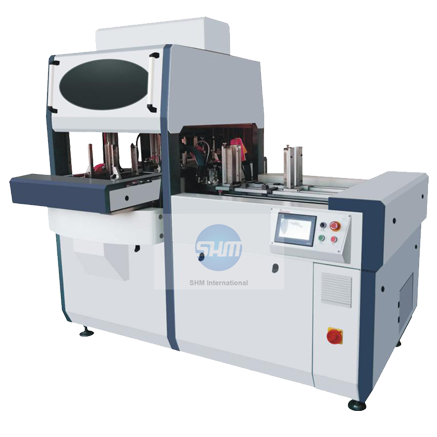

APH230 Automatic Cardboard Splicing Machine
INTRODUCTION:
It adopts the way of splicing three pieces cardboard to assemble a box. And its forming process employs the hot melt glue spraying instead of the paper tape sticking. It not only save the materials, but also makes the end products much solid and beautiful. No tape traces appears on the surface of finished boxes. It has multi glue spray ways, such as the point-spraying, the line-spaying etc. which is carrying out according to the requirements of boxes.
MAIN FEATURES:
1. Big board adopts bottom-drawn non-stop stacker, fed and controlled by servo motor.
2. Small board also adopts bottom-drawn non-stop stacker. After feeding, it “stands up” and waits for forming.
3. Mold employs servo motor control.
4. Imported gluing system.
MAIN SPECIFICATIONS:
| Box size | Max.400x300x200mm Min.100x60x20mm |
| Cardboard thickness | 1.5-5mm |
| Speed | 20-35pcs/min |
| Glue barrel capacity | 6L |
| Air supply | 300L/min 0.8Mpa |
| Power | 7kw 380V 3phase |
| Dimension | 2150x2300x2160mm |
| Weight | 1200kg |
-
The corresponding relationship between the parameters:
L＝A W=C+2T H=D+T
B=W+2H (If board is grooved)
B=W+2H-4T （If board is die cut）
-
