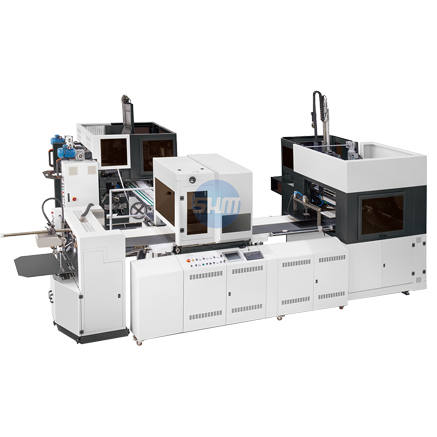

RB185A/RB185B Automatic Rigid Box Maker
INTRODUCTION:
Automatic Rigid Box Maker is a good equipment for making high-grade boxes because it is characterized by fine design, reliable performances and advanced technologies. It employs PLC, photoelectric detector system, hydraulic system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time. It is applicable to make high-grade boxes for shoes, shirts, jewelry, gifts, etc.
MAIN FEATURES:
1. Adopt new design of servo and pneumatic control structure to wrap the box, fast digital adjustment of sizes.
2. New designed servo controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.
3. The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.
4. The concentrated oil system fully ensure each parts lubricating and the steady running of machine.
5. Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
MAIN SPECIFICATIONS:
| Model | RB185A | RB185B |
| Box size | Max.400x600mm Min.50x100mm | Max.400x600mm Min.50x100mm |
| Paper size | Max.610x850mm Min.95x180mm | Max.610x850mm Min.95x180mm |
| Box height | 12-185mm | 12-120mm |
| Turn in depth | 10-100mm | 10-100mm |
| Paper thickness | 100-400g/m2 | 100-400g/m2 |
| Cardboard thickness | 0.8-3mm | 0.8-3mm |
| Precision | ±0.1mm | ±0.1mm |
| Speed | ≤30pcs/min | ≤30pcs/min |
| Air supply | 50L/min 0.6Mpa | 50L/min 0.6Mpa |
| Electric heating power | 10kw | 10kw |
| Power | 20kw 380V 3phase | 20kw 380V 3phase |
| Weight | 6800kg | 6800kg |
| Dimension | 7000x5000x3600mm | 7000x5000x3600mm |
-
1.Camera Positioning System
Three camera positioning and mechanical arm clamping box to achieve high-precision positioning.
-
2.Digital Adjustment of Sizes
Adopt new design of servo and pneumatic structure to wrap the box,fast digital adjustment of sizes.
-
3.Servo Controlled Paper Feeder
New designed servo controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.
-
4.Line-touch Designed Copper Scraper
The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.
-
5.Concentrated Lubrication SystemThe concentrated oil system fully ensures each parts lubricating and the steady running of machine.
-
6.Glue Viscosity Meter (Optional)
Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
