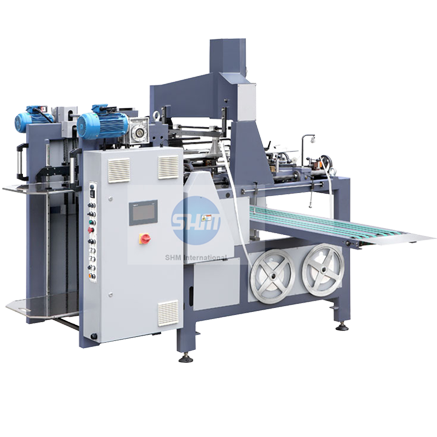

ATJ600 Automatic Box Former
MAIN FEATURES:
1. It adopts PLC control and friendly HMI.
2. Automatic feeding cardboard, Max. stacking height 1000mm.
3. In order to improve working speed, cardboard table adopt on-line feeding.
4. Easy to change mold, suitable for different sizes of products.
5. The hot-melting glue tape auto conveying, cutting and four-angle sticking, forming the box in one process.
6. Auto alarm when the tape run out.
MAIN SPECIFICATIONS:
| Cardboard size | Max.600x800mm |
| Cardboard thickness | 0.8-3mm |
| Box size | Max.600x400x150mm Min.100x50x15mm |
| Max speed | 35sheets/min |
| Heater power | 1.8kw |
| Motor power | 2.4kw |
| Weight | 1550kg |
| Dimension | 2350x2500x2300mm |
