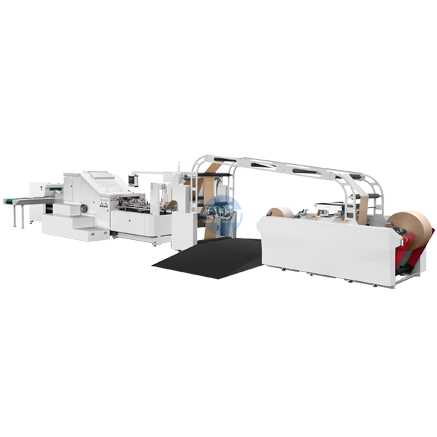

RZFD-330(2PLY) Fully Automatic High Speed Square Bottom Double Discharge Paper Bag Machine

INTRODUCTION:

This machine is used for rolls of primary color paper or printing rolls such as kraft paper, food paper and other paper rolls. This machine completes the paper bag process at one time. It consists of 2 sets of automatic paper roll tension, roll correction, gluing, center gluing, raw material into tube, fixed length cutting, bottom indentation,bottom folding, bottom gluing, bag bottom forming, and finished bag finishing at onetime.This machine is more convenient to operate, more efficient, and more stable. It is an environmentally friendly automatic double-feed paper bag machine equipment for producing various paper bags, snack food bags, bread bags, dried fruit bags, etc.

MAIN FEATURES:
1.Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber.Thus ensure stable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction,tracking printing bag accurately.
4.Patch bag function adopts a complete set of German original LENZE servo motor.Through integration with optical fiber, it works with the German original Rexroth motion controller (PC).
5.Automatic hole-punching adopts Germany original LENZE servo motor.
6.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.7.Raw material unwinding EPC adopts ltaly SELECTRA, reducing material alignment time.
MAIN SPECIFICATIONS:
ModelRZFD-330(2PLY)
Paper bag length270-530mm
Paper bag width120-330mm
Paper bag bottom width60-180mm
Paper thickness80-150g/m²
Machine speed30-220pcs/min
Paper bag speed30-180pcs/min
Paper roll width380-1050mm
Roll paper diameter1300mm
Lnner diameter of paper76mm
Power380V 3phase 4line 16.5kw
Weight9700kg
Dimension13000x2700x2400mm


  • THE FLOW CHART 1:
  • THE FLOW CHART 2:
