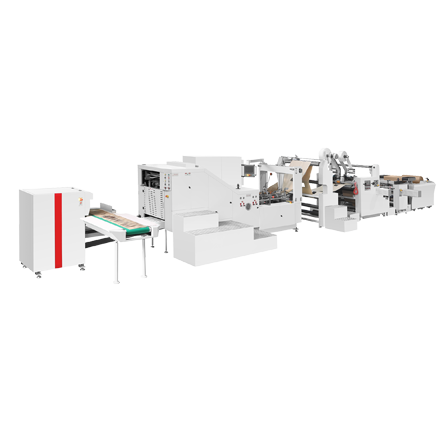

RZFD-330/450(W+D) High Speed Square Bottom Paper Bag Machine(Open Window+Patch Bag)

INTRODUCTION:

This machine is used for rolls of primary color paper or printing rolls such as kraft paper, food paper and other paper rolls.This machine completes the paper bag process at one time.The window opening part is completed by unwinding,window opening. filming, edge glue, forming, cutting and indentation, bottom opening and bottom gluing, folding bottom forming, and finished bag finishing.The Paige bag part is completed by unwinding, patching, edge glue, forming,punching and cutting, bottom indentation and folding, bottom glue forming, and finished bag finishing in one time.This machine is more convenient to operate, more efficient, and more stable. It is an environmentally friendly paper bag machine equipment for producing various paper bags, snack food bags, bread bags, dried fruit bags, etc.

MAIN FEATURES:
1.Use France Schneider Touch Screen Human-Computer Interface, operate and control easily.
2.Adopt Germany Original REXROTH PC Control, integrated with optical fiber,ensure high speed running steadily.
3.Germany Original REXROTH Servo Motor and Germany Original SICK Photoelectric Eye Correction,tracking printing bag accurately.
4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt Italy SELECTRA, Reduce adjustment time.
MAIN SPECIFICATIONS:
ModelRZFD-330(W+D)RZFD-450(W+D)
Cutting length270-530mm270-530mm
Paper bag width120-330mm220-450mm
The hole width50-120mm50-120mm
The hole height50-120mm50-120mm
Paper bag bottom width60-180mm90-180mm
Patch bag width190-330mm190-330mm
Patch handle length75/85mm75/85mm
Paige bag paper thickness80-150g/m²80-150g/m²
Paige bag film thickness30-60mm30-60mm
Paige bag roll width130mm130mm
Patch bag speed30-120pcs/min30-120pcs/min
Machine speed30-200pcs/min30-200pcs/min
Paper bag speed30-150pcs/min30-130pcs/min
Paper roll width380-1050mm590-1290mm
Strip window size60-150mm60-150mm
Roll paper diameter1200mm1200mm
Power380V 3phase 4line 50.4kw380V 3phase 4line 50.4kw
Weight10000kg10500kg
Dimension15500x4200x2000mm15500x4200x2000mm


  • THE FLOW CHART 1:
  • THE FLOW CHART 2:
  • THE FLOW CHART 3:
  • THE FLOW CHART 4:
