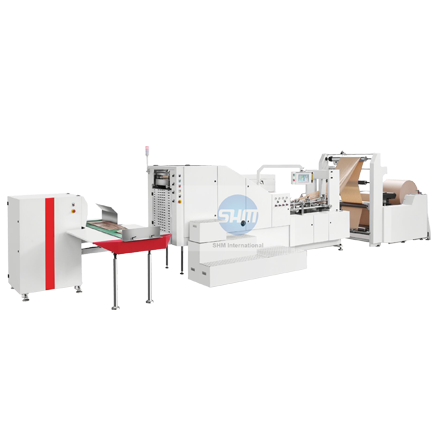

RZFD-330/450 Roll Fed Square Bottom Paper Bag Machine
INTRODUCTION:
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time.The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and other environmental paper bags.
MAIN FEATURES:
1.Use France Schneider Touch Screen Human Computer Interface, operate and control easily.
2.Adopt Germany Original REXROTH PC Control, integrated with optical fiber, ensure high speed running steadily.
3.Germany Original REXROTH Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.
4.Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt Italy SELECTRA, Reduce adjustment time.
MAIN SPECIFICATIONS:
| Model | RZFD-330 | RZFD-450 |
| Bag length | 270-530mm | 270-530mm |
| Bag width | 120-330mm | 220-450mm |
| Bag bottom width | 60-180mm | 90-180mm |
| Paper thickness | 60-150g/m² | 80-150g/m² |
| Speed | 30-220pcs/min | 30-200pcs/min |
| Paper bag speed | 30-180pcs/min | 30-150pcs/min |
| Paper roll width | 380-1050mm | 660-1290mm |
| Roll paper diameter | 1300mm | 1300mm |
| Power supply | 3phase 380V 15kw | 3phase 380V 15kw |
| Weight | 8500kg | 9000kg |
| Dimension | 10000x3700x2200mm | 10000x3800x2200mm |
-
THE FLOW CHART:
