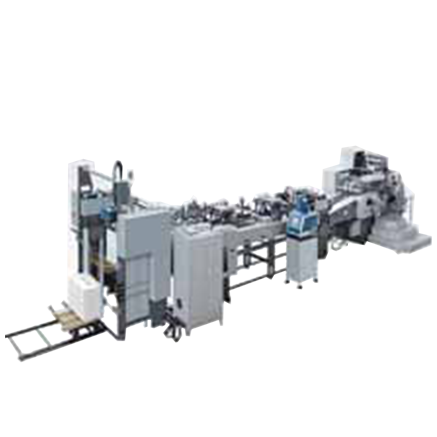

ZB1200C-430 Sheet feeding Paper Bag Making Machine
MAIN FEATURES:
3. The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process.
4. The machine adopts PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system.
5. The machine is equipped with big and small side pasting device, hot melt and water soluble cold glue device, which meets the different needs of customers.
6. The machine is equipped with advanced pre-stack paper feeder, which realizes non-stop paper delivery.
7. The advanced digital screw adjustment system makes the adjusting time short.
MAIN SPECIFICATIONS:
| Sheet size | Max.1200x600mm Min.600x350mm |
| Sheet weight | 100g-250g/m² |
| Bottom width | 80-170mm |
| Bag width | 180-430mm |
| Bag length | 250-470mm |
| Power | 14kw |
| Speed | 50-70bags/min |
| Weight | 16000kg |
| Dimension | 14000x2100x1900mm |
