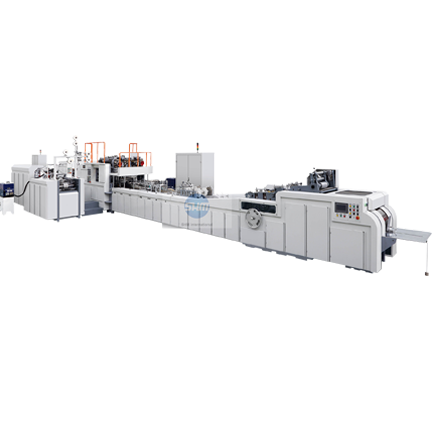

ZD-QFP08 Fully Auto Sheet-fed Square Bottom Paper Bag Machine

INTRODUCTION:

This machine is designed to manufacture square bottom paper bags with handles from sheet paper, paper patch roll and paper rope, and it is an ideal equipment for producing mid-to-high-end paper handbags. By implementing steps including handle making, handle application, bag mouth folding, tube forming and bottom forming within a fully automatic process, this machine can effectively save labor costs. Equipped with advanced pre-heap paper feeder, this machine can realize non-stop feeding, thereby improving the production capacity. Thanks to perfect technologies, the machine can produce paper handbags with high quality in many different forms, thoroughly liberate the hands for making small-sized paper handbags, and bring more profit for the customer.

MAIN FEATURES:
1. This machine can make 3 different kinds of paper bags, according to customers’ various requirements, from various kinds of paper, including kraft paper, coated paper and laminated paper, etc.
2. This machine can produce small-sized shopping paper handbags automatically, so as to thoroughly enhance the efficiency of making paper bags for luxury industry.
MAIN SPECIFICATIONS:
Paper width470-780mm
Paper length310-530mm
Paper thickness100-160gsm
Bag body width135-250mm
Bag body length215-395mm
Bag bottom size60-130mm
Bag mouth fold width35-55mm
Handle rope height155-175mm
Handle rope diameter4-6mm
Handle rope length114.3mm
Handle rope width40-50mm
Paper patch roll diameter1200mm
Paper patch width80-100mm
Paper patch thickness100-250gsm
Power22kw
Weight20000kg
Dimension13500x4300x2400mm
