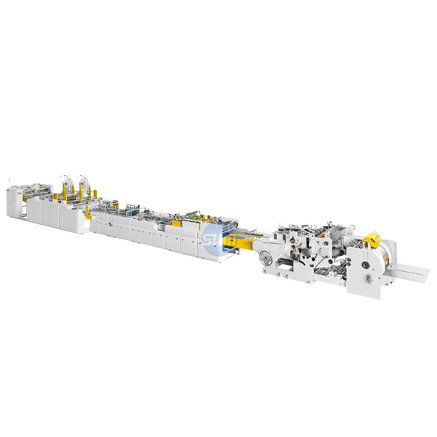

KL-220A/350A/450A Automatic Paper Bag Making Machine with Top Folding and Hole Punching
MAIN FEATURES:
1. The machine can finish automatic creasing, automatic top folding and automatic hole punching.
2. Plat making time only needs 2-3 hours, and the perfect non-stop operation is well ahead of the similar machine, to win more time and create more value.
3. One engineering expertise and the long service life of our equipment guarantee higher capacity and lower cost while at the same time increase the output of quality products and reduce the unit cost.
4. For the power consumption, our machines only has 3.7kw, which is much lower than similar machine.
5. High end devices for the machine, even for each bolt, which using 12.9 grades high strength bolts of more stress and more impact resistance.
6. From bearing to electrical apparatus, our machine adopts the international well known high quality brands, such as NHK, SCHNEIDER ETC.
7. Our machine can be applicable to kraft paper, art paper, white paperboard and grey paperboard etc, including laminating paper.
MAIN SPECIFICATIONS:
| Model | KL-220A | KL-350A | KL-450A |
| Paper bag width | 120-220m | 180-350mm | 220-450mm |
| Paper bag bottom/gusset | 60-120mm | 70-150mm | 90-170mm |
| Paper sheet width | 380-700mm | 530-1040mm | 600-1240mm |
| Paper sheet length | 240-440mm | 290-600mm | 320-600mm |
| Paper types/paper weight (230-300g after die cutting process) | Kraft paper 120-200g Art paper+laminated PP 120-210g | Kraft paper 120-200g Art paper+laminated PP 157-210g White Cardboard 180-250mm Grey paperboard laminated PP film 150-300g | |
| Distance between holes | 60mm、100mm | 80mm、120mm | 100mm、140mm |
| Hole diameter | Φ4mm、Φ5mm、Φ6mm | Φ4mm、Φ5mm、Φ6mm | Φ4mm、Φ5mm、Φ6mm |
| Working speed | 50-85pieces/mm | 40-75pieces/mm | 40-75pieces/mm |
| Glue type | Water glue/hot glue system | Water glue/hot glue system | Water glue/hot glue system |
| Power | 15kw | 15kw | 15kw |
| Weight | 10000kg | 11000kg | 12000kg |
| Dimension | 14700x1930x1700mm | 15200x1930x1700mm | 15200x2100x1700mm |
-
THE FLOW CHART:
