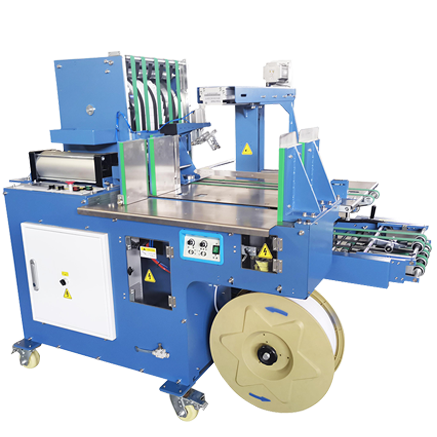

LSZK360B Vertical Paper Collating and Bundling Machine
INTRODUCTION:
This machine is an all-in-one solution designed for the collating and bundling of individual sheets of paper, ideal for use with folded pamphlets, instruction manuals, letters, and other single-sheet materials. It performs a range of functions including feeding, flattening, vertical stacking, pushing, compressing, and bundling.
The machine mainly consists of the following components，Feeding unit Flattening device Conveyor turning device Vertical stacking table Pushing mechanism Compression device Bundling mechanism.
MAIN FEATURES:
2. Automatic Feeding: This machine employs a high-performance automatic feeder that accommodates various folding styles, ensuring a smooth and orderly feeding process.
3. Compression and Flattening: Utilizes an elastic compression mechanism to flatten and solidify the fed papers, allowing for air expulsion and further flattening.
4. Vertical Alignment: The machine ensures that papers are vertically aligned and stacked through a rotating drum.
5. Count and Mark Function: It comes equipped with a counting feature that also allows for preset marks on specified numbers of sheets.
6. Automatic Stacking: The machine can automatically push the vertically stacked papers to the compression station, reducing the manual labor involved in paper handling and providing a buffer to accommodate the stacking time.
7. Compression for Quality: The auto-fed papers are compressed to ensure a tighter spine, positively impacting the quality of subsequent processes.
8. Bundling Options: After compression, the papers can be bundled using PU straps or optionally with rope, fulfilling all requirements for paper bundling.
9. Highlights:The machine is versatile in structure and can handle different folded sheet sizes for vertical stacking. It features adjustable speed controls for rapid operation and ease of use.
MAIN SPECIFICATIONS:
| Paper size | Max.460x290mm Min.150x100mm |
| Bundling Size | Max.360x290mm Min.200x130mm |
| Bundling length | 700mm |
| Bundling pressure | 1000kg |
| Stacking speed | Max.16000P/H |
| Power | 1.6kw |
| Weight | 700kg |

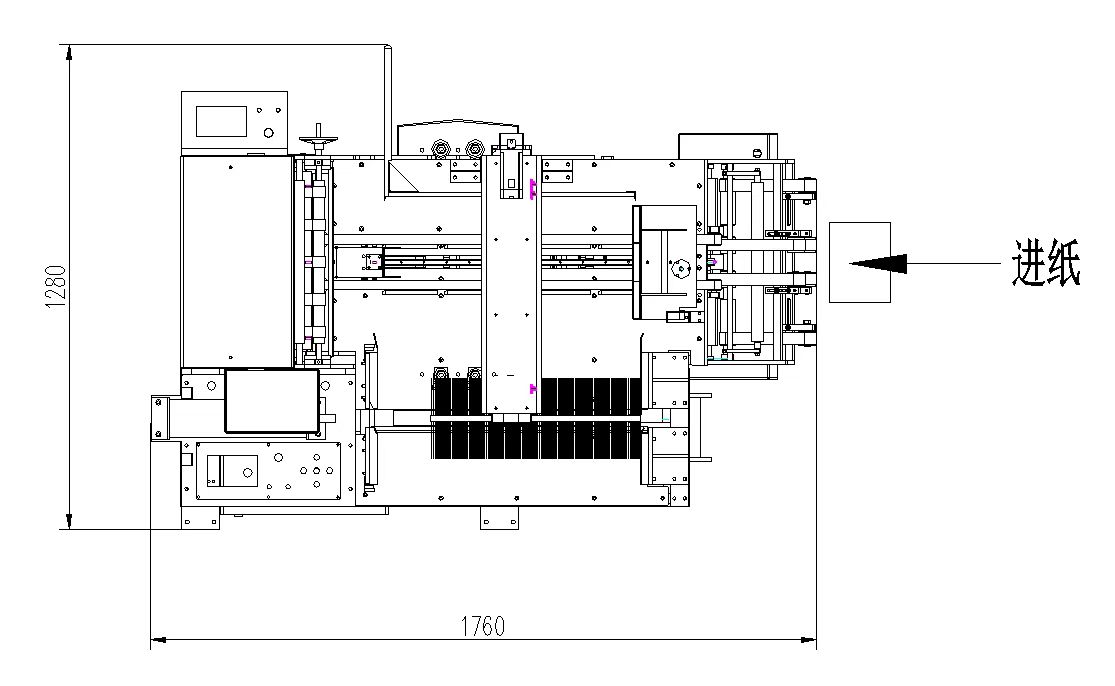

| Dimension | 1760x1280x1400mm |
