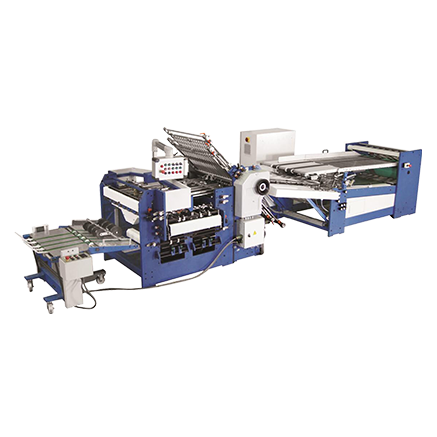

ZYHD780A-H Electronic Knife Hybrid Folding Machine
INTRODUCTION:
This advanced folding machine consists of a stack feeder, four buckle plates for folding, three independent servo-controlled knives, and a sheet collector. The machine is engineered for folding single sheets of various types, including booklets, pamphlets, instruction manuals, and letters. It features a stack feeding system and employs a hybrid folding technique, using four buckle plates and three knives. When using the buckle plates, the machine can perform parallel, accordion, and roll folds. During hybrid folding, the machine executes vertical, mixed four-fold patterns, and the folded sheets are collected and stacked by the sheet collector. The machine is configured for 32-page regular or reverse folding.
MAIN FEATURES:
13. Selectable Buckle Folding: The buckle plates feature swing deflection for quick setup, making different folding styles easy to achieve.
14. Auto-Collect Function: The folded sheets are automatically and orderly output, with a standard regular sheet collector configured.
MAIN SPECIFICATIONS:
| Max folding paper size | 780x1160 mm |
| Min sheet size | 1-buckle folding: 150x200mm 1-buckle 1-knife folding: 200x300mm 1-buckle 2-knife folding: 300x400mm 1-buckle 3-knife folding: 390x540mm |
| Sheet thickness | 40-200gsm |
| Roll speed range | 650mm |
| Max rotary feeder height | 55-645mm |
| Buckle quantity | 4sets |
| Max vertical folding tines | 3times |
| Roll speed range | 75-210 m/min |
| Max folding knife working frequency | 350stroke/min |
| Folding speed | 210x297parallel one folding27000 sheet/hr 540x780 parallel one folding12000 sheet/hr |
| Power | 7.14kw |
| Weight | 3000kg |
