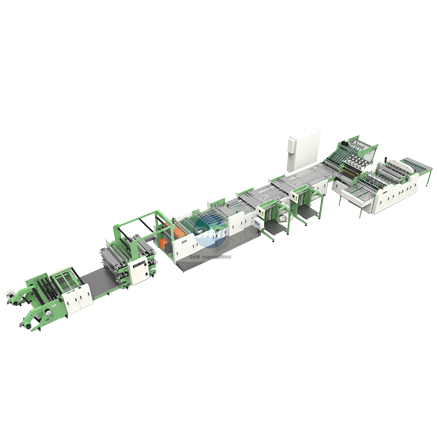

AFPS-1020LD Fully Automatic Exercise Book Production Line
INTRODUCTION:
The fully automatic excercise book line is a highly sophisticated solution for the fabrication of wire stitched exercise books, ruled and unuled preproducts, folded sheets or country specific finished products. It can be used for medum and large runs, from reel to the finished product. Basic machine consists of a single reel stand, flexo ruing, cross cutting, overlapping, collecting and counting, sheet feeding, wire stitching, folding. spine pressing, trimming of long sides, cutting into indvidual products, collecting of exercise book stacks and straight-on delivery.
MAIN FEATURES:
1. Optimal for medlum and large runs
2. High productity , qually and fexibility
3. Very good acsssbility through L-shape especlally during deep plle operation
MAIN SPECIFICATIONS:
| Model | AFPS-1020LD |
| Max reel diameter | 1200mm |
| Paper width | 700-1050mm |
| Printing color | 2/2 on both sides |
| Printing cutting length | 350-660mm |
| Max ruling width | 1040mm |
| Cutting length | 260-660mm |
| Max machine running speed | 350m/min depend on paper GSM and quality |
| Number of sheets per group | 6-50sheets |
| Inner page thickness | 55-120g/m² |
| Index page thickness | 100-200g/m² |
| Cover thickness | 150-300g/m² |
| Cover length | 700-1050mm |
| Cover width | 260-660mm |
| Max cover pile height | 800mm |
| Max deliver pile height | 1300mm |
| Stitching head quantity | 8pcs |
| Max stitching thickness | 5mm |
| Binding length | 130-240mm |
| Binding width | 700-1050mm |
| Face trim | 700-1050mm |
| Side trim | 130-240mm |
| Cutting thickness | 2-10mm |
| Power Require | 60kw 380v 3 phases (depend on user power require ) |
| Dimension | 2180x8800x2600mm |
| Weight | 35800kg |
