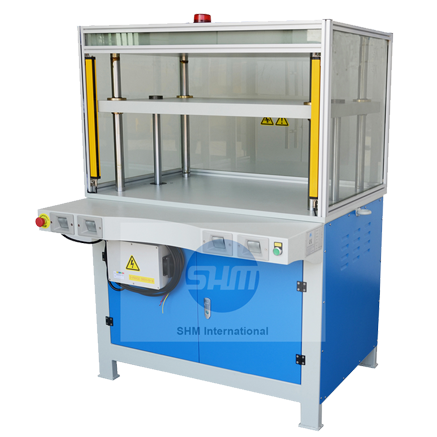

MF-800 Spine Pressing Machine
MAIN FEATURES:
1.The machine uses double hγdraulic cylinders to set the shape of book and laminated book covers which produce pressure when moving down to set the shape of book and laminated book covers.
2.The pressure can be adjusted to meet different requirement . (1T -10T)
3.And for the safety of users. we equip the machine with two infrared induction which intelligentlγ stops the movement of working plate when detecting users’ hands.
MAIN SPECIFICATIONS:
| Model | MF-800 |
| Max pressing size | 880x660mm |
| Max pressing height | 520mm |
| Max pressure | 10T |
| Power supply | 380V/50HZ |
| Power | 2.2kw |
| Weight | 900kg |
| Dimension | 770x1120x1550mm |
