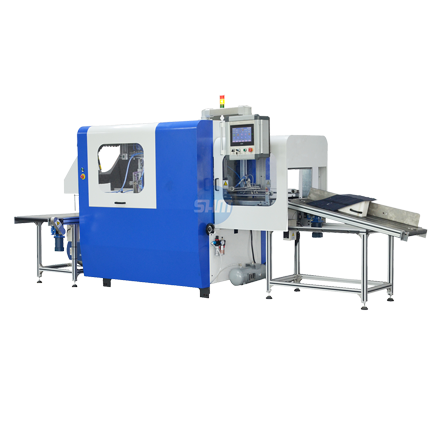

MF-SEM450 Semi Auto Elastic Band Inserting Machine
MAIN FEATURES:
This machine is used forinserting the elastic band to hard cover.
lt manually delivers the cover,automatically cuts the elastic band, automatically inserts and sticks the elastic band into the cover, greatly enhancing the working efficiency and product quality.
MAIN SPECIFICATIONS:
| Model | MF-SEM450 |
| Cover size | Max.310x450mm Min.140x190mm |
| Elastic band margin | 15-20mm |
| Elastic band size | 6-10mm |
| Case thickness | 1.5-4mm |
| Speed | 700pcs/hr |
| Power supply | 380V 50Hz |
| Power | 6kw |
| Weight | 1000kg |
| Dimension | 1300x1200x1600mm |
-
Auto Punching
-
High temp elastic band cutting
-
Hot melt glue spraying system
