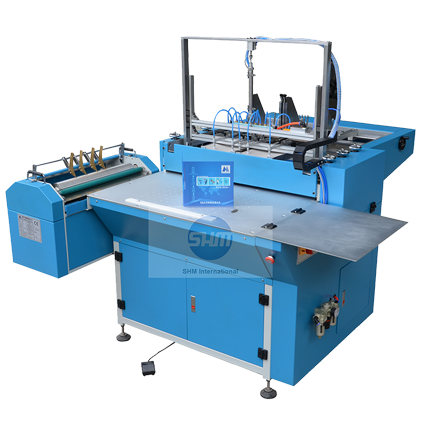

CM500 Semi Automatic Case Making Machine
MAIN FEATURES:
1. The machine is applied in covering and pressing various notebooks, photo books (photo album), folders, certificates, hard cover books.
2. The running is finised easily at twice on both sides at the same time by one operator.
3. It is the good partner of post-press, especially the digital post-press.
4. Adopting PLC operating system
5. Use hot glue, cold glue
6. Quick adjustment for changing different products
7. Automatic and pneumatic feder position by foot switch
8. Adjust the size by rotating the handle
MAIN SPECIFICATIONS:
| Open book case size | Max.800x450mm Min.150x150mm |
| Hard case spine width | Min.8mm |
| Cardboard thickness | 1-4mm |
| Speed | 3-6pcs/min |
| Cover material thickness | 80-200g |
| Motor power | 5.2kw 380V 3 phase |
| Weight | 550kg |
| Dimension | 1780x1620x1400mm |
