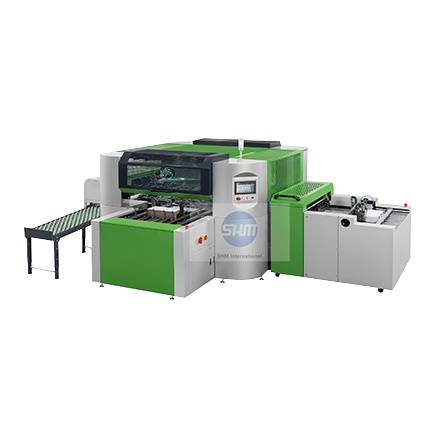

ACM21/22 Automatic Case Making Machine
INTRODUCTION:
Little Cyclone is characterized by many advantages such as intelligence, fastness,convenience and simplicity in operation. It is mainly applicable in the packaging and book and periodical industry. It is widely used to package mobile phones, electronics, electric appliances, cosmetics, foodstuff, clothing, shoes, cigarettes, liquor and wine products.
MAIN FEATURES:
2.It can quickly access to the factory ERP systems. The data of production and fault, etc. can enter the system.
3.Very gorgeous consumable manufcture appearance design, more beautiful, more safe.
4.Split assemble style make the assemble process simple and smart.
MAIN SPECIFICATIONS:
| Case size | Max.450x800mm Min.100x200mm |
| Round corner case | Max.450x550mm Min.130x200mm |
| Soft spine case | Max.360x680mm Min.100x200mm |
| Cloth thickness | 120-300gsm |
| Board Thickness | 1-4mm |
| Spine size | Hard spine:Max.8mm Soft spine:Max.20mm |
| Speed | Standard case:10-38pcs/min Round corner case:10-25pcs/min |
| Motor power | 15.6kw 3Phase 50Hz |
| Power | 2x4.5kw |
| Dimension | 21:5100x3300x1800mm; 22:5800x3300x1800mm |
-
WORKING PROCESS:
-
CASE TYPE:
-
CASE TYPE:
-
CASE TYPE:
-
CASE TYPE:
