Products Book Making System HARD COVER BOOK MACHINE

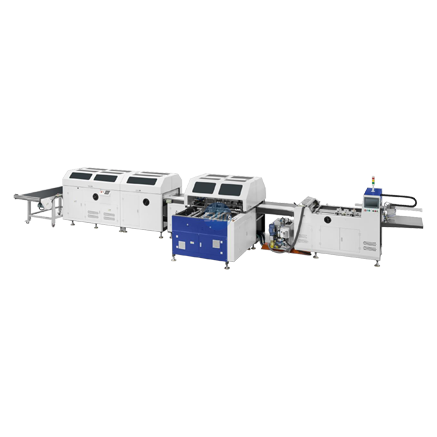

CM600A Automatic Case Maker

INTRODUCTION:
At present, the factory is basically handmade and semi-mechanized production, which requires a large number of labor forces, a large number of labor forces need to carry out human resources management, and these labor forces are some ordinary female workers, their own poor quality, low cultural level, management difficulty, many bosses and managers are also miserable. The automatic cover machine produced by our company has the characteristics of fast production speed, less labor, beautiful finished products and high precision. Products can be widely used in the production of hardcover book cover, notebook, folder, desk calendar, wall calendar, packaging gift box and other fields.


MAIN FEATURES:
1.Paper is automatically glued
2. Automatic transfer of cardboard positioning and fitting
3. Hem on all four sides at once(Folding shaped cover)
4. User-friendly graphical man-machine interface, displayed on all faulty computers
5. The integrated safety cover is designed according to the European CE standard, which is safer and more humane
MAIN SPECIFICATIONS:
ModelCM600A
Paper sizeMax.630x1430mm
Min.130x230mm
Product sizeMax.600x1400mm
Min.120x220mm
Paper thickness100-300gsm
Cardboard thickness1-3mm
Center strip sizeMin.7mm
Folding size10-18mm
Cardboard qty.Max.6pcs
Precision±0.1mm
Speed≤35pcs/min
Air supply30L/min 0.6mpa
Power380V 3phase 12kw
Weight3900kg
Dimension9500x2600x1700mm


  • PAPER GLUING PART
    Full pneumatic Feeder head: PLC control, simple structure, easy operation, novel design (in the domestic good is the first, is my company's invention patent)
    Paper conveyor adopts ultrasonic double paper detection device
    Paper correction device, to ensure that the paper glue does not occur deviation


  • PAPER GLUING PART

    The rubber rollers are all made of polished stainless steel chromium-plated rollers, and the wire contact scraper is more durable

  • PAPER GLUING PART
    The rubber drum has constant temperature heating, filtering, circulating gluing, and has an automatic mixing device
    The valve can be changed quickly, and the rubber roll cleaning takes only 3-5 minutes


  • CARDBOARD TRANSFER DEPARTMENT
    Cardboard conveying adopts bottom extraction structure, in the case of machine without stopping, you can add cardboard at any time
    When the cardboard conveying is short, there is an automatic detection device (when several pieces of cardboard are sent at the same time, less than one or several pieces of cardboard, the machine will stop and alarm)


  • POSITION FITTING PART
    The transmission adopts servo motor drive and high-precision photoelectric positioning
    The conveyor belt is provided with a high-power suction fan, so that the face paper can be smoothly adsorbed on the conveyor belt
    The cardboard conveying is carried by servo motor
    The on-line action is controlled by PLC
    A pre-pressing roller is provided above the conveyor belt to keep the cardboard and paper fit before folding


  • FLATTEN PART
    The left and right sides of the film base band fold
    The folding part is delivered by front and rear split double drive servo motor, synchronous no displacement, no scratch
    Angle trimming using motor parts can make the Angle trimming effect more ideal


  • FLATTEN PART
    Using pneumatic structure to wrap edges, can produce special-shaped cover
    Multilayer flattening with non-stick Teflon rollers


  • PRODUCTION FLOW:
  • PRODUCT SAMPLE:
