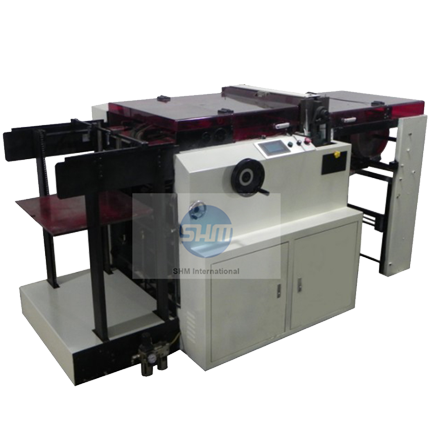

SPB550 High Speed Punching Machine
INTRODUCTION:
The machine is suitable for punching holes in all kinds of notebook, book andperiodicals, calendars paper, tutorial paper in batch, especially for width paper and presspaper. This machine combines with the advantages of efficience, high safety, easy operation and wide use of paper to increase your production efficient rate. So easy for punching if your own it.
MAIN FEATURES:
1. It’s wide applied for punching different paper size, max punching width 600mm and 3mm thickness of presspaper.
2. Easy operation and high safety.
3. To make special punching hole moudle is available for the customer’s request within the size of paper.
4. High quality for punching without deckle edge and accurate punching position.
MAIN SPECIFICATIONS:
| Sheet size | Max.559x600mm Min.100x100mm |
| Max punching thickness | 3mm |
| Paper weight | 60-350gsm |
| Punching speed | Up to 7200 punch times/hour |
| Max paper height | 500mm |
| Power | 3phase 380V 50Hz |
| Main motor power | 3kw |
| Weight | 1600kg |
| Dimension | 2200x1300x1200 mm |
