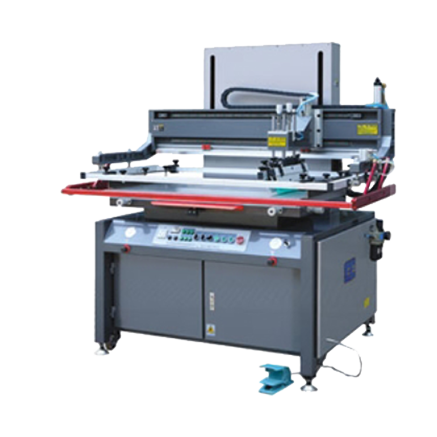

JB-II Series Horizonta-lift Half-tone Printing Machine
INTRODUCTION:
It is suitable to screen printing of many flat surface such as paper, plastic, glass, ceramics, metal, textile, leather and so on, especially for the printing of electron field PCB, soft PCB, PCB liquid state sensitization glue, SMT tin cream.
MAIN FEATURES:
1. Integrative speed reducer drive the up and down of printing head quickly and steadily.
2. High precision guide-rail equipped with "MEGADYNE" synchronization belt drive the printing with higher and steadier working precision through frequency conversion.
3. Gas-liquid transformer linked with off-network cylinder, which ensure network off equally and steadily.
4. The fine tuning and lock device of work table is separate, which eliminate the work table locked error.
5. Two cylinders control the squeegee and ink return blade separately so that the printing pressure is large and equal.
MAIN SPECIFICATIONS:
| Model | JB-750 II | JB-960 II | JB-1280 II |
| Max printing size | 500x700mm | 600x900mm | 800x1200mm |
| Max frame size | 800x1160mm | 900x1360mm | 1100x1660mm |
| Workbench size | 600x900mm | 700x1100mm | 900x1400mm |
| Max printing thickness | 40mm | 40mm | 40mm |
| Height of instant off-network | 0-20mm | 0-20mm | 0-20mm |
| Max printing Speed | 1200pcs/h | 1100pcs/h | 900pcs/h |
| Weight | 600kg | 750kg | 900kg |
| Dimension | 1500x1080x1700mm | 1700x1180x1700mm | 2000x1380x1700mm |
