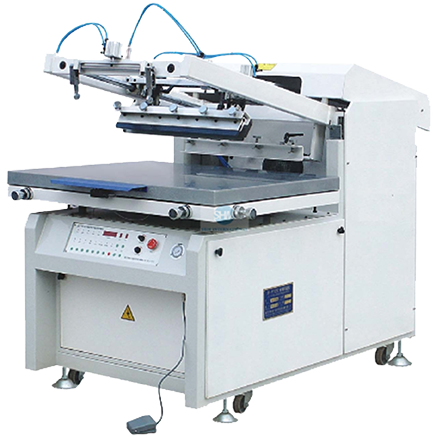

JB Series Microcomputer Screen Printing Machine
Model | JB-4060 | JB-6080 | JB-6090 |
Max printing size | 400x600mm | 600x800mm | 600x900mm |
Print station acreage | 600x700mm | 800x900mm | 800x1000mm |
Printing speed | 1300pcs/h | 1200pcs/h | 1200pcs/h |
Max frame size | 700x800mm | 900x1000mm | 900x1100mm |
Printing motor | 0.75kw | 0.75kw | 1.1kw |
Lifting motor | 0.75kw | 0.75kw | 0.75kw |
Wind motor | 0.75kw | 1.1kw | 1.1kw |
Machine power | 2.25kw | 2.6kw | 2.95kw |
Weight | 450kg | 550kg | 600kg |
Dimension | 1500x800x1250mm | 1800x1100x1300mm | 1800x1200x1300mm |
