MF-ATT100S Automatic three knife trimmer machine
Adopts Janpanese keyance PLC control system,frequency conversion speedregulation,human-computer interactiveoperation inferface,scalable dock-inglSM system.
The fuselage is integrated and completely cast,the structure is strong insteel,and the German pentahedronmachining centerisprocessed and molded at one time to ensure high prcision.
It adopts a double-strengthened brake mechanism,which can safety brakeat high speed and power failure to ensure safety.
The automatic height adjustment function of the book makes the conversioneasier and faster.
Quick tooling design,you can easily change the blade without tools.

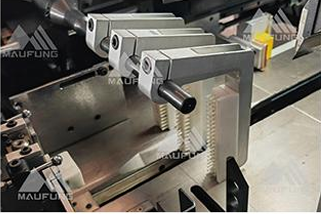

Configure 8 overall movable knife boards to ensure full-size coverage.
Adopts double-side edge silicone lubrication device,the cutting surface issmooth and smooth-automatic oil supplylubrication.
Fully enclosed protection,safe and low-noise optional devices:anti-breakdevices can be purchased and installed as needed
| Max untrimmed size | 385 x 310mm |
| Min untrimmed size | 115 x 95mm |
| Max cutting height | 100mm |
| Max finished size | 380 x 300mm |
| Min finished size | 140 x 90mm |
| Min single cutting height | 3mm |
| Cutting speed | 15-50Times/m |
| Power | 6.1kW |
| Overall dimension | 3600 x 2430 x 1750mm |
| Machine weight | N.W3800 |
