Products Book Making System HARD COVER BOOK MACHINE

MF SCM500A Senu auto case maker(Auto cardboard feeding)

INTRODUCTION

This machine is mainly applied in covering and pressing various notebooks,photo books (photo album), folders, certificates, hardcover books. This pro-cess is finished easily at twice on both sides at the same time by one opera-tor. It is the good partner of post-press, especially the digital post-press.Automatic paper feeding system; Pneumatic auto foot switchAdopting PLC operating systemUse hot glue (animal glue /Jelly glue)Replace products, fast adjustment speed. The thickness of the cardboardcould adjusted automatically

Adjust the size by rotating the handle wheelLight Tube inside the working table makes the position more accurate.


Details
Details
MAIN SPECIFICATIONS:
ModelMF-SCM500A
Power supply 380V/220V, 3P, 50Hz
Mainframe power 5.2kW
Work speed 1-3PCS/minute
Paperboard thickness1-4mm
Hard case spine width 8mm
Open book case size 780 x 430mm
Open book case size 140 x 140mm

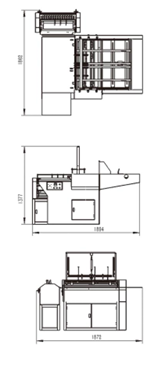

Machine dimensions 1780 x 1620 x 1400mm
Cover material thickness 80-200g
Machine weight 500kg
