KYD-1080C Automatic full page blanking & stripping machine
INTRODUCTION
The Model 1080C+ is a new high-speed blanking system that features Auto Loading, Auto Plate Changing, Auto Collection, Auto Stacking, which used to be done by hand. This easy-to-operate machine includes features like a conveyor system and a new layout, to allow just one operator to do all the work from blanking to job changes by themself.
The KYD-1080C+ can be used for speedy handling of multi-product, small-lot production needs, such as paper packages, cartons, transparent packaging, and so on.
MAIN FEATURES
Automatic stacking of finished product
Fully page stripping & blanking
Fully page products collection
Automatic plate change
MAIN SPECIFICATIONS:
| Max material stack size | 1080 x 780mm |
| Max material stack herght | 80mm |
| Max product size | 1060 x 760mm |
| Mini product size | 80mm x 80mm |
| Max pressure | 100Bar |
| Speed | 1 - 2 times/min |
| Total power | 21kW |
| Average power | 10kW |

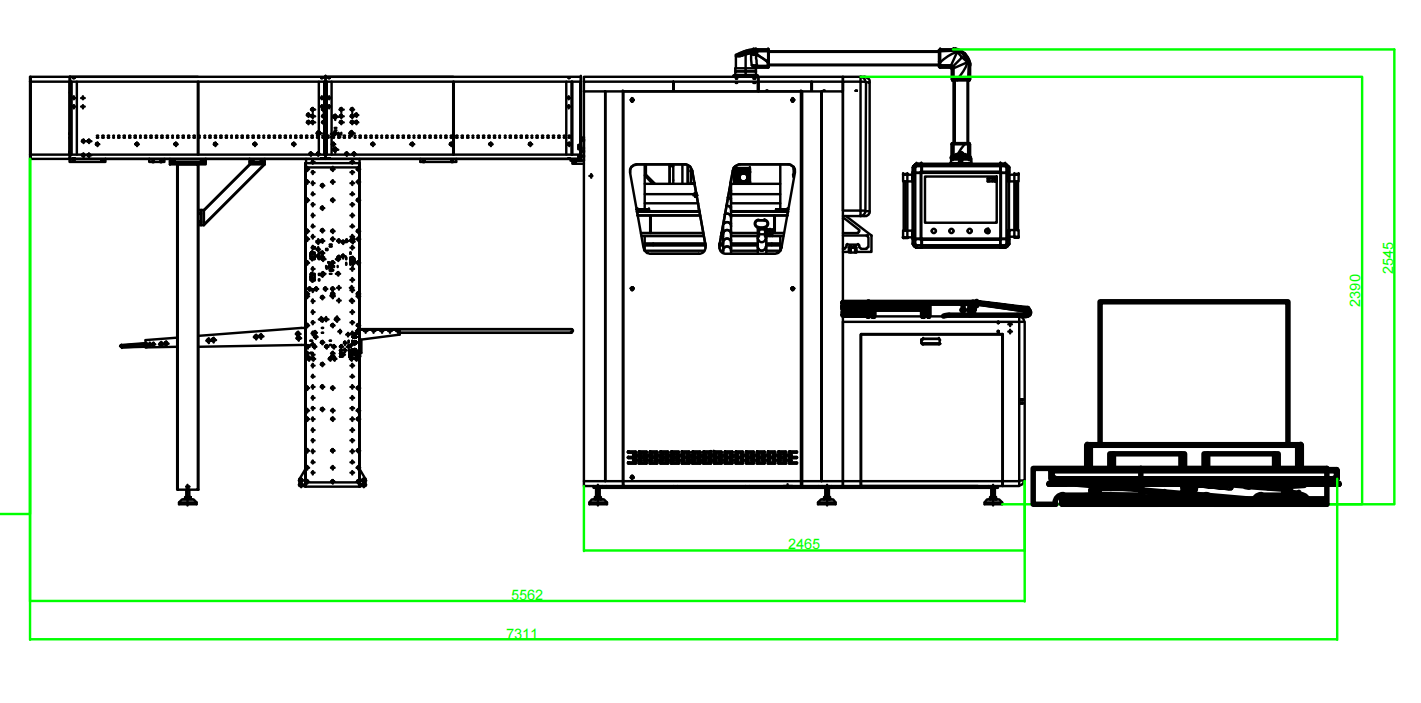

| Machine size | 7300 x 2150 x 2550mm |
| Weight | 6200kgs |
| Voltage | 380V/3phase/50HZ |
| Air consumtion | 165L/min |
| Air pressure | 0.5 - 0.6Mpa |
-
Auto Lifter with Auto stop sensor
-
Photoelectric sensor to control the height of auto lifter
-
0.75kw* 2 sets Servo motor with reducer for conveyor belt forward &backward
-
Conveyor belt
Delivery the blanked Products from collection unit to Auto Stacking unit.
-
Auto collection unit
For collect the blanked products.
-
through Upper and Lower Pins to press and remove the waste of product with one time.
Upper Pin: ∅5mm
Lower Pin: ∅12mm
