KYD-1080A Double function semi-auto stripping & Blanking machine
INTRODUCTION
This automatic stripping & blanking machine has a powerful waste removal function completely with row blanking function, which can achieve one pass fully remove all waste after die cutting for different specifications of box types, windows, and aircraft holes, and material waste edges of front and back stitching as long as they are within the size requirements of machine.
This machine have the high quality for removing the waste completely in one pass, with fast efficiency, simple operation, increasing user’s production capacity.
MAIN FEATURES
Not need the mould for different product size, with the honeycomb plate frame and pins to adapt to the changeable box shape. The lower pins support products area, the upper pins pressed on the waste area to remove the waste.
Save Labor and Save tool cost and mould cost.
Row stripping & Full stripping function; can deal with more die cutting products.
OEM Upper Working Panel for customer die cutting layout.
1 pass to stripping & blanking waste area completely, High efficiency with Simple adjustment,Easy operation. Improve the user’s production capacity greatly.
MAIN SPECIFICATIONS:
| Max material stack size | 1080 x 780mm |
| Max material stack height | 80mm |
| Products size | 35 x 35mm --1060 x 760mm |
| Max pressure | 100Bar |
| Speed | 1-5times/min |

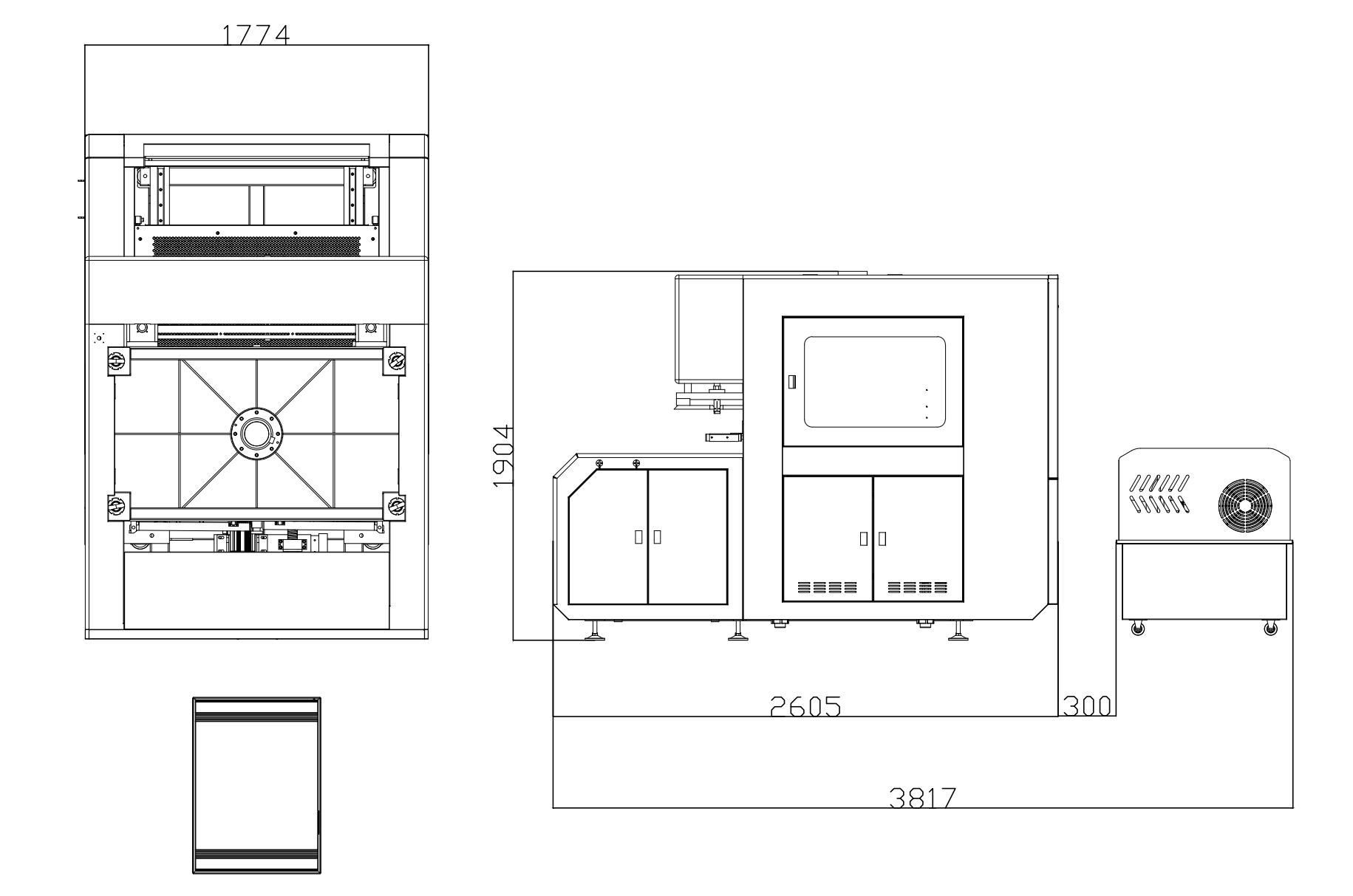

| Machine size | 2650 x 1800 x 2000mm |
| Weight | 3000kgs |
| Power | 380V/3phase/50HZ/10kW |
| Air consumption | 2L/min |
| Compressed Air | 5-6Bar |
-
Electrical part
-
Cylinder
-
High protections of installed Grating protector, with CE standard, high precision sensor on the feeding 2 side for protecting, and double OFF/ON buttons operation.
-
Machine use the Vane type hydraulic pump to make sure the stability of machine working pressure.
-
Row Stripping Function
Upper metal fingers to press on the waste part & not-working part
Lower pins to hold the products part . Lower Pins diameter: 12mm & 8mm -
Whole Blanking Function
Through Upper and Lower Pins to press and remove the waste of product with one time, Not need any mould for different size & different shape of box.
Upper pins to remove the waste parts. Diameter: 5mm & 3mmLower pins to hold the products part. Diameter: 12mm & 8mm
-
Machine use high strong structure
High precision frame of machine is more strong and ensure the machine main body strong loads. 4 pcs of 80mm diameter main frame Pipe can hold 80tons pressure.
-
Servo motor drive the 50mm diameter Lead screw to make sure the working table In & Out motion it is high stability and precise.
