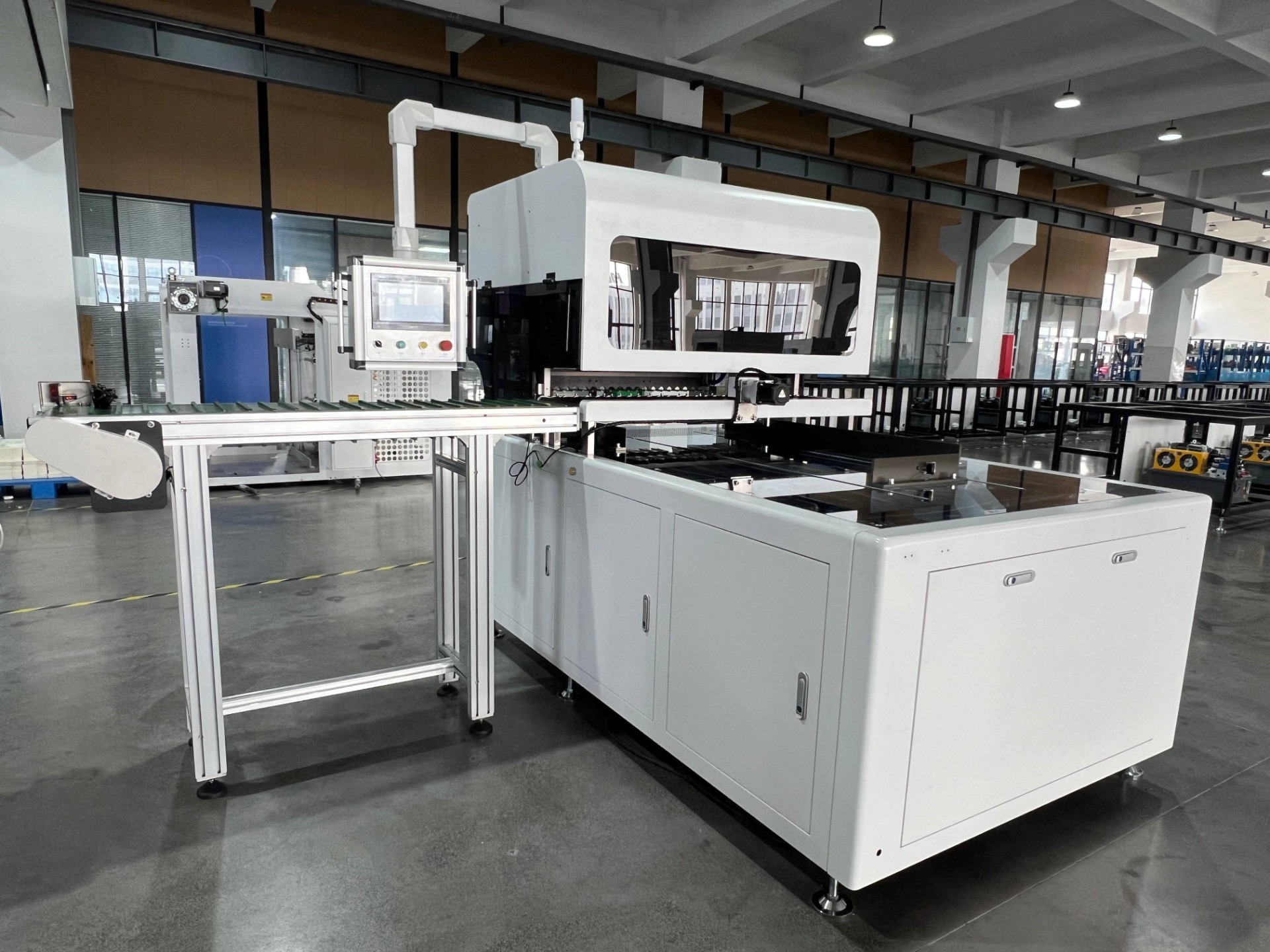

KYD-950 Semi-Automatic row stipping machine
INTRODUCTION
As an innovative solution for post-die-cutting processes, this equipment integrates automatic waste removal, product collection, and scrap discharge in one system. With advantages including easy set-up, small footprint, high output,and low eclectic cost. It is ideally suited for hang tags, labels, paper cups, pharmaceutical packaging, cosmetic packaging, and so on. The system effectively reduces labor costs, enhances product quality, and boosts production efficiency through intelligent automation.
MAIN FEATURES
Economical & Smart
MAIN SPECIFICATIONS:
| Max material stack size | 950 x 950mm |
| Max stack thickness | 80mm |
| Mini stack thickness | 60mm |
| Max product size | 930 x 280mm |
| Mini product size | 90 x 60mm |
| Max pressure | 50kN |
| Speed | 5times/min |
| Total power | 6.5kW |
| Average power | 3.5kW |
| Air consumption | 13L/min |
| Working air press | 0.5 - 0.6Mpa |
| Voltage | 380V 50/60Hz 3Phase |
| Machine size | 2820 x 2030 x 2100mm |
| Weight | 2010kg |
-
Air cylinder
-
Electrical parts
Simple and clear wiring, with well- known low-voltage electrical components
-
Rotating Touch Screen
Simple and clear wiring, with well- known low-voltage electrical components
-
Conveyor table with auto stop function
-
Servo-controlled aluminium rollers ensure product transfer to the conveyor table stably.
Deliver servo motor: 0.75kw
-
Auto Products Collection Function Reduces labor costs
Collection servo motor:0.75kw
-
Upper Pressing plate press on the waste part and Lower Pins to support the products part.
Mini waste gap: 3MM
-
Servo motor and ball screw ensures a precise pile positioning
Feeding servo motor: 1.5KW
-
Vane type hydraulic pump with cooling fan giving the stable working pressure.
Oil Tank Volume: 60L
Motor: 3.75KW -
The overall frame is simple and firm,and occupies a small area.
