KYD-750 Semi-Auto hang tags stripping machine
INTRODUCTION
KYD-750 semi-automatic hang tag stripping machine, suitable for removing clothing tags, cards, and small paper boxes. No mold needed, servo and hydraulic system driven, ensures precision, high efficiency, and labor savings. Simple operation with low failure rate.
Feature
1,KYD-750 Semi-auto Hang Tags stripping machine, is suitable for removing clothing tags, cards, small medicine boxes, cigarette boxes, toy boxes and other cardboard boxes.
2. Not need the mould for different product size, with the upper pressing plates & lower pins to adapt to different products size & shape.
3. The main action is driven by the servo motor, liner screw and hydraulic system, which makes the equipment more accurate and convenient to use, with low failure rate and agile action.
4.Save Labor and Save tool cost and mould cost, high efficiency, simple operation, increasing user’s production capacity
MAIN SPECIFICATIONS:
Model | KYD-750 |
Max Material Stack Size | 750 x 720MM |
Max Material Stack Height | 80MM |
Mini Material Stack Height | 40MM |
Max Products Size | 740 x 200MM |
Mini Products Size | 40 x 31MM |
Max Pressure | 40kn |
Speed | 8 times/min |
Total Power | 5KW |
Average Power | 3.5KW |
Air Consumption | 2L/min |
Compressed Air | 5-6 Bar |
Voltage | 380V/3 phase/50HZ |

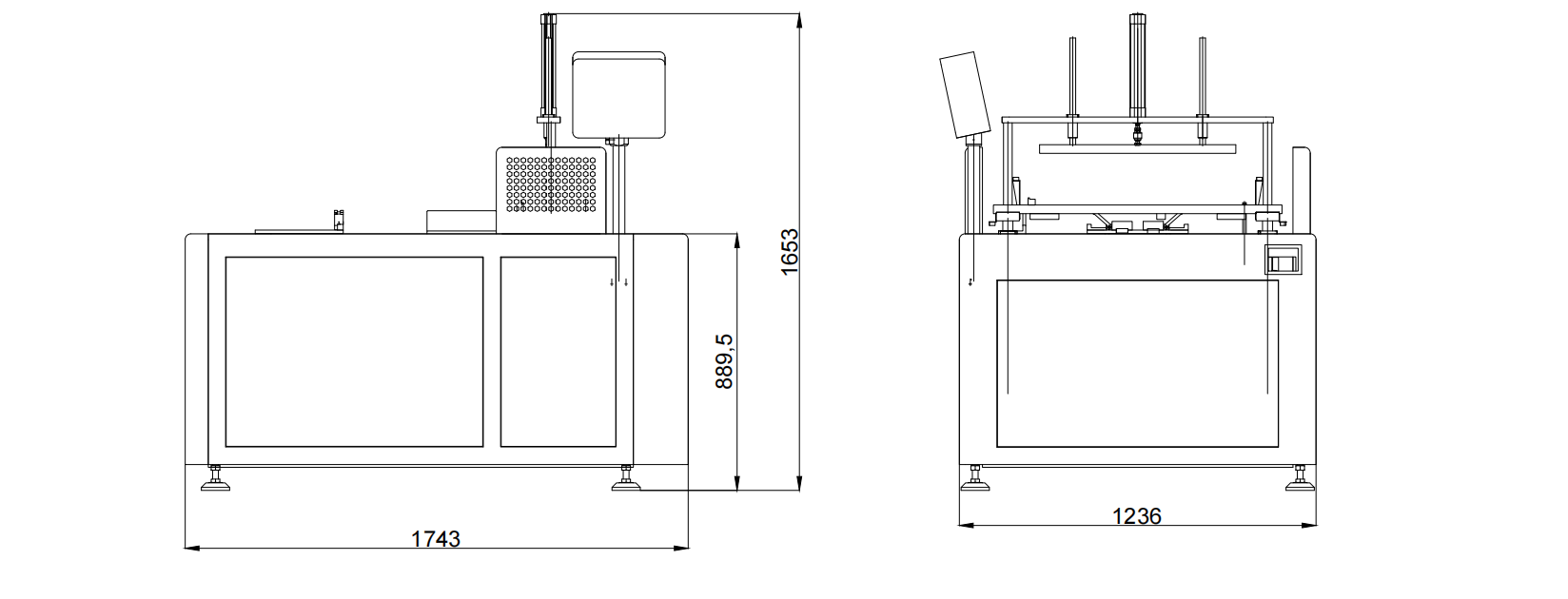

Machine size | 1710 x 1330 x 1780mm |
Weight | 1550 KGS |
-
Finished products collection unit
-
Electrical parts
-
Touch Screen
Easy adjust machine and set new data working.
-
High-precision safety grating ensures safe operation
-
Mini waste gap
3mm
-
The lower pins support products area
Honeycomb panel size: 750mm*200mm
Lower Pins diameter: 12mm -
Working table
The upper pressing plate pressed on the waste area
-
Vane type hydraulic pump with cooling fan giving the stable working pressure.
-
Max. Paper length
720mm
-
Servo system
0.75kW Servo motor with reducer to drive the Lead screw to make sure the Paper stacks In & Out motion it is high stability and precise.
-
Motor
3.75kW
-
Hydraulic system
Upper oil cylinder: 40mm x 110mm x 2pcs
Lower oil cylinder:63mm x 200mm x 1pc
