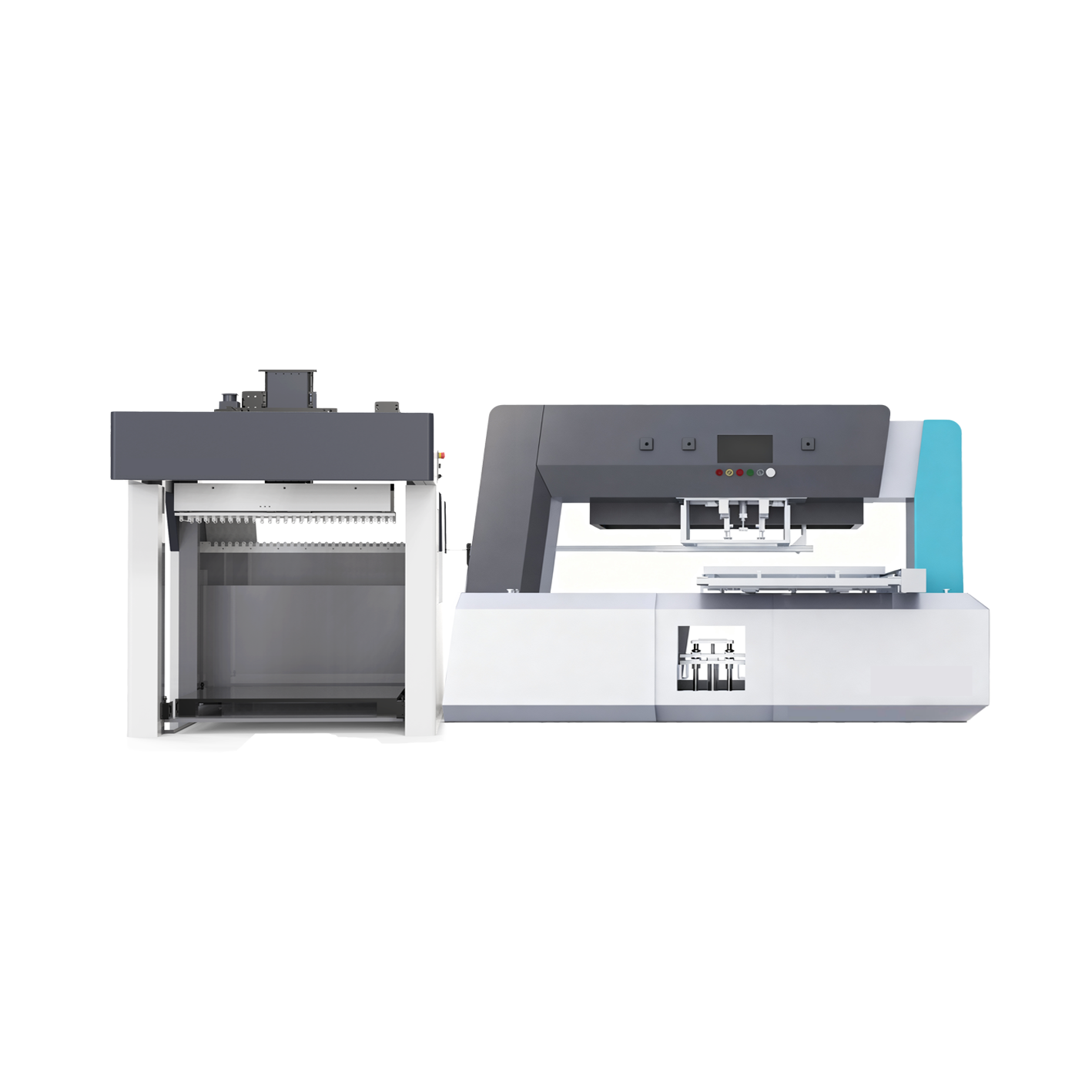

Microcomputer stripping machine with paper collecting
VIDEO
MAIN FEATURES
The machine is required only on person to operate. It can great help to increase productivity and reduce the labor const. It is easy to save time and power.
With PLC control. it has convenient operation, safe and reliable
Servo motor driven to ensure that the machine positioning accuracy and operating accuracy, low failure rate.
Automatic stacking neat, regular, can qucikly and accurately distinguish defective products, can be taken out alone, does not affect other good product
Using the pneumatic mechanical hand to receive the paper, automatic stacking, collecting neatly and stable movement.
The double heads can realize the stripping of the lock bottom boxes, self-locking boxes; (only for double heads machine)
Automatic robot dispensingm, controlled by the reversible gear motors, pneumatic clamp the material, finished products to the conveyor belt, improve transport efficiency, reduce labor costs, and improve productivity.
Cross tropsch paper sets off headers immobile ; cross - tropsch products from paper driving, avoid friction damage to the product.
The body of gantry structure, appearance of the atmosphere, sophisticated manufacturing
MAIN SPECIFICATIONS:
| Model | LF-960DPD | LF-1020DPD | LF-1020SPD |
| Max paper size | 960 x 750 | 1020 x 960 | 1020 x 960 |
| Min paper size | 300 x 300 | 300 x 300 | 300 x 300 |
| Max mark stripping size | 250 x 300 | 450 x 350 | 450 x 350 |
| Min Mark stripping size | 30 x 30 | 30 x 30 | 30 x 30 |
| Size of robot reclaimer | 50 x 50 - 240 x 300 | 50 x 50 - 350 x 350 | 50 x 50 - 350 x 350 |
| The paper height | 50 - 85 | 50 - 85 | 50 - 85 |
| Mark stripping speed (times/min) | 1 - 18 | 1 - 18 | 1 - 18 |
| Mainpulator grabbing paper thickness | 50 - 85 | 50 - 85 | 50 -85 |
| Collecting volume | 950 x 950 x 1300 | 950 x 950 x1300 | 950 x 950 x 1300 |
| Machine speed | 0 - 20 | 0 - 20 | 0 - 20 |
| Voltage | 380v50Hz | 380v50Hz | 380v50Hz |
| Max working pressure | 2.5 | 2.5 | 2.5 |
| Overall power | 8.3 | 8.3 | 9 |
| Pressure | 6 - 8 | 6 - 8 | 6 - 8 |
| Overall weight | 3400 | 3600 | 4100 |
| Overall Dimension | 4250 x 3200 x 2100 | 4700 x 3200 x 2100 | 5300 x 3200 x 2100 |
