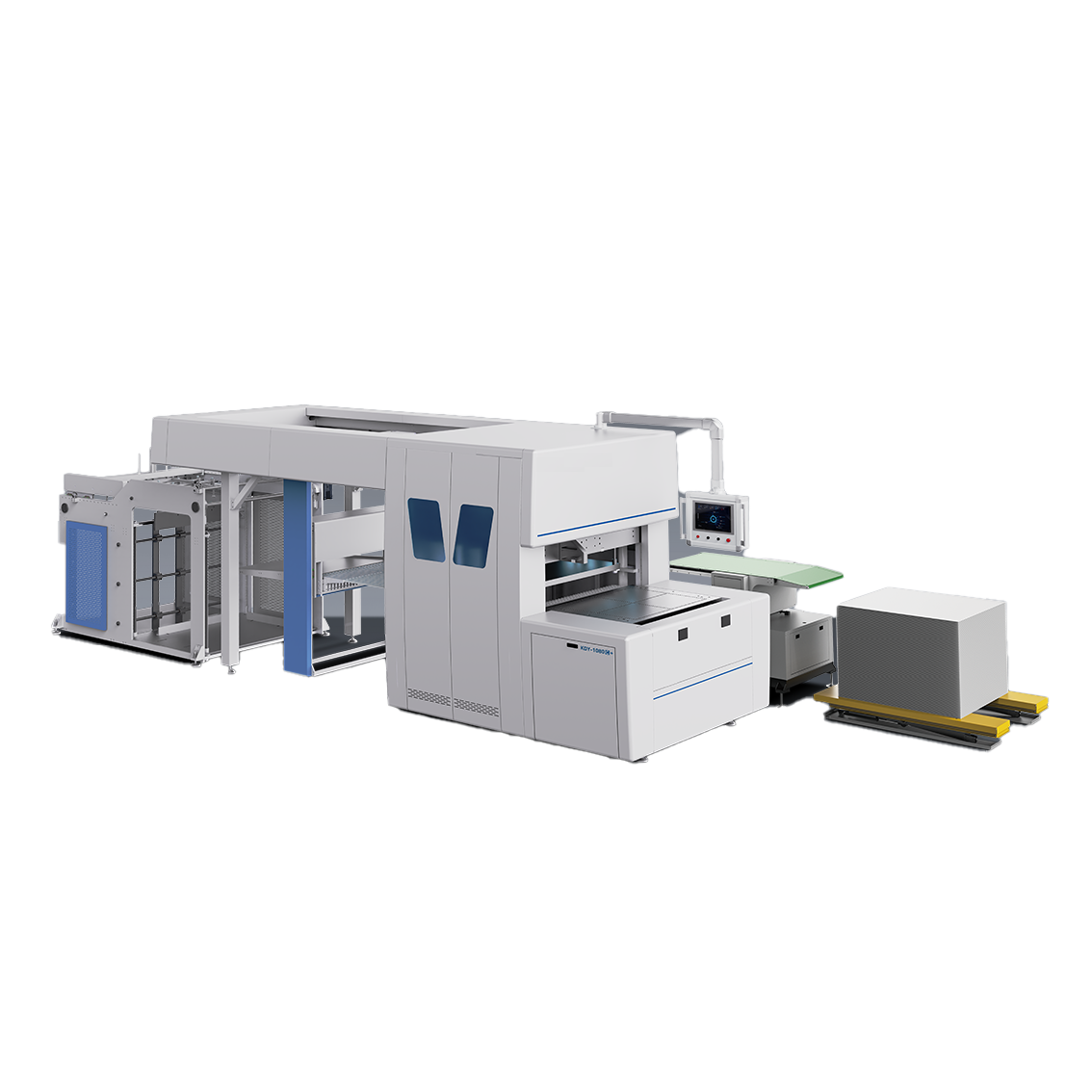

KYD-1080C+ Automatic full page blanking & stripping machine
INSTRODUCTION:
The KYD-1080C+ is a new high-speed blanking system that features Auto Loading,Auto Plate Changing,Auto Collection,Auto Stacking,which used to be done by hand.This easy-to-operate machine includes features like a conveyor system and a new layout,to allow just one operator to do all the work from blanking to job changes by themself.
THE KYD-1080C+ can be used for speedy handing of multi-product,small-lot production needs,such as paper packages,cartons,transparent packaging,and so on.
VIDEO
MAIN FEATURES:
Automatic plate change:No need for manual pins insertion,One-click plate change,only need 5mins
Full page products collection: One time full page finished product collection
Full-page stripping & blanking: Mixed box specifications, window cutting, front and back imposition, easily achieves waste removal and product collection.
Automatic stacking of finished product:Different products can be automatically stacked with automatic placement of partition paper.
MAIN SPECIFICATIONS:
| Max stack size | 1080 x 780mm |
| Max stack thickness | 80mm |
| Max product size | 1060 x 760mm |
| Mini product size | 100 x 100mm |
| Max pressure | 80KN |
| Power supply | 380V-50/60Hz |
| Total power | 20kW |
| Air consumtion | 255L/min |
| Overall dimensions | 7370 x 2150 x 2550mm |
| Weight | 7200kg |
-
Touch screen
For operate machine,easy adjust machine and set new data working.
-
Auto sticking unit
With isolation paper function.
-
Conveyor belt
Delivery the blanked products from collection unit to auto stacking unit.
-
Auto collection unit
For collect the blanked products.
-
Through Upper and Lower Pins to press and remove the waste of product with one time.
Upper Pin: ∅5mm
Lower Pin: ∅12mm -
Strong structure
80mm diameter main frame Pipe make sure the machine stable running.
