SJ-90GJ
INTRODUCTION:

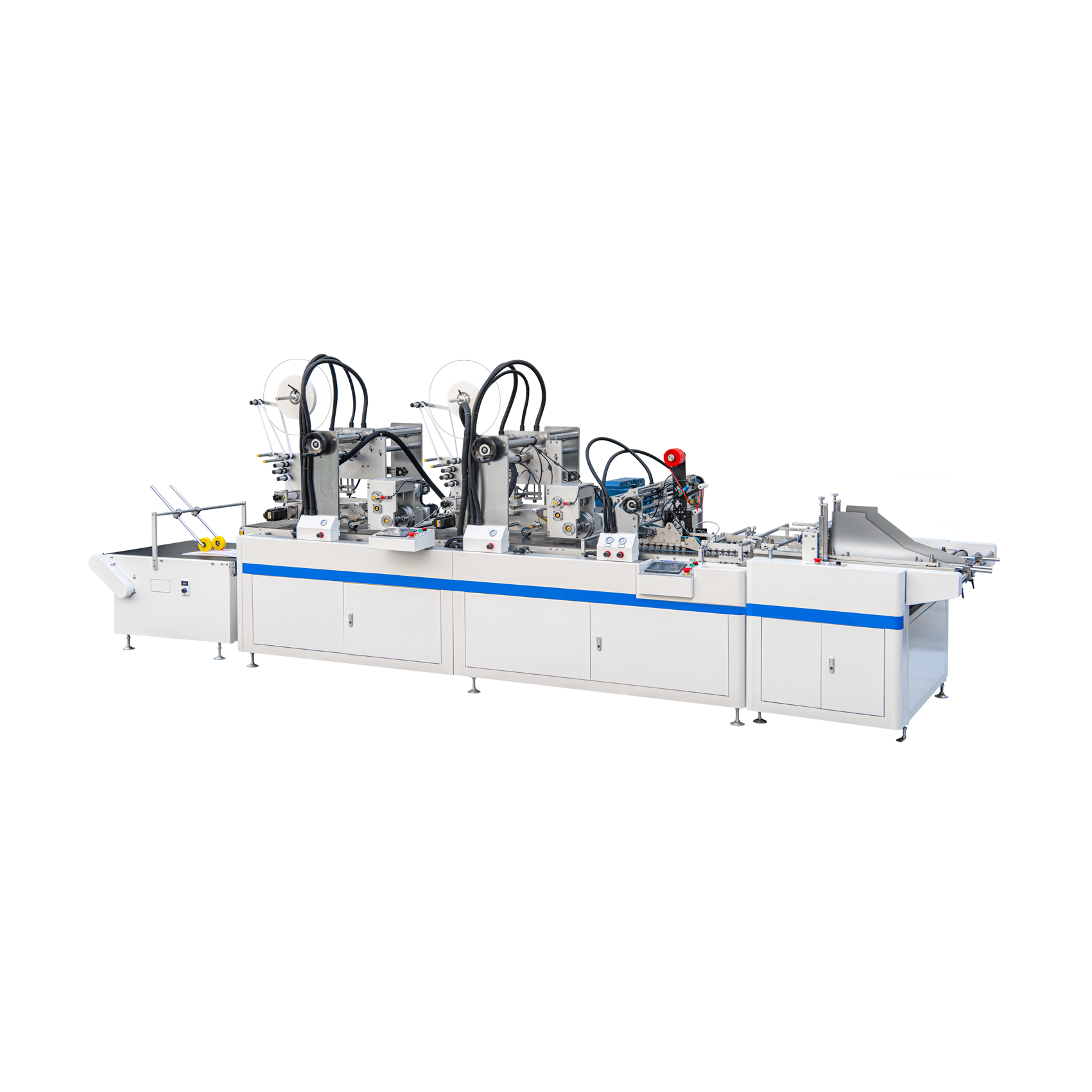

The Automatic Scraping Glue Sticking Release Paper Machine is used to automatically apply adhesive onto products using release paper. It handles high-speed production while ensuring precise glue placement, and can also attach easy-tear tape in the sam.
MAIN FEATURES:
1.The cost of scraping pressure-sensitive adhesive is saved.
2.The new squeegee technology solves the problem of uneven squeegee caused by traditional squeegee on the product due to deformation and other factors.
3.The speed is fast, and the line speed can be stabilized up to 60m/min.
4.It can paste easy-tear tape and perform scraping at one time.
5.Automatic feeding: The paper feeding part adopts a friction feeding method to prevent scratches.
6.Optical fiber electric eye and servo positioning ensure accurate positioning.
MAIN SPECIFICATIONS:
| Model | SJ-90GJ |
| Max sheet size | 900 x 860mm |
| Min sheet size | 200 x 200mm |
| Squeegee width | 8 - 40mm |
| Shortest squeegee length | 100mm |
| Speed | 40 - 90m/min |
| Accuracy | +-1mm |
| Power | 10kw/AC 380V |
| Machine dimension | 5290 x 137 x 1900mm |
| Weight | 1200kg |
