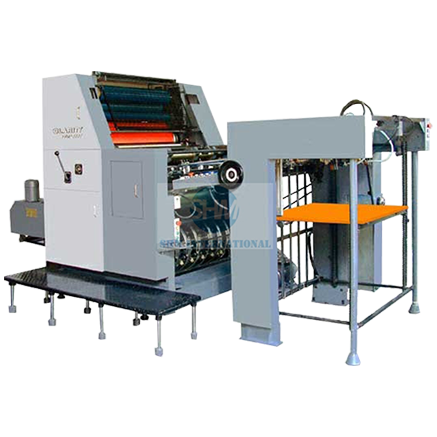

YPA1-5000 Offset Press
MAIN FEATURES:
Frequency Conversion Step-less Speed Regulation
Patented In-feed Swing Arm for Stable Performance and Accurate Register
Enclosed Delivery Chain Guide Rail
Special Plate Clamp System for Easy Operation
Centralized Automatic Lubricating System
MAIN SPECIFICATIONS:
| Max sheet size | 640 × 900mm |
| Min sheet size | 363 × 392mm |
| Max printing area | 620 × 880mm |
| Plate size | 750 × 915 × 0.3mm |
| Max printing speed | 5000sph |
| Sheet thickness | 0.06-0.45mm |
| Feeder stacking capacity | 1000mm |
| Delivery stacking capacity | 450mm |
| Machine power | 6.8kw |
| Weight | 4200kg |
| Dimension | 3600 × 2010 × 2020mm |
