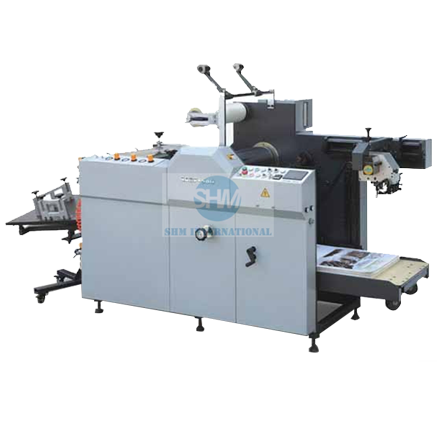

SADF-540 Automatic Laminator
MAIN FEATURES:
Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
Air expansion shaft release film, and perfects the precision of film release, and also makes the loading and unloading of film roll much more convenient.
The combination of air expansion shaft and braking device can adjust film release tension and release speed.
Film cutter cuts film width to make it meet paper size.
Pneumatic cutting system realizes automatic paper cut.
Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
After cutting, the laminated paper will be sent automatically to vibrating receiving table and be put into order.
Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
MAIN SPECIFICATIONS:
| Paper size | Max.540x780mm Min.210x290mm |
| Laminating speed | 0-30m/min |
| Paper thickness | 105-500gsm |
| Power | 15/8kw |
| Weight | 1400kg |
| Dimension | 3200x1250x1650mm |
