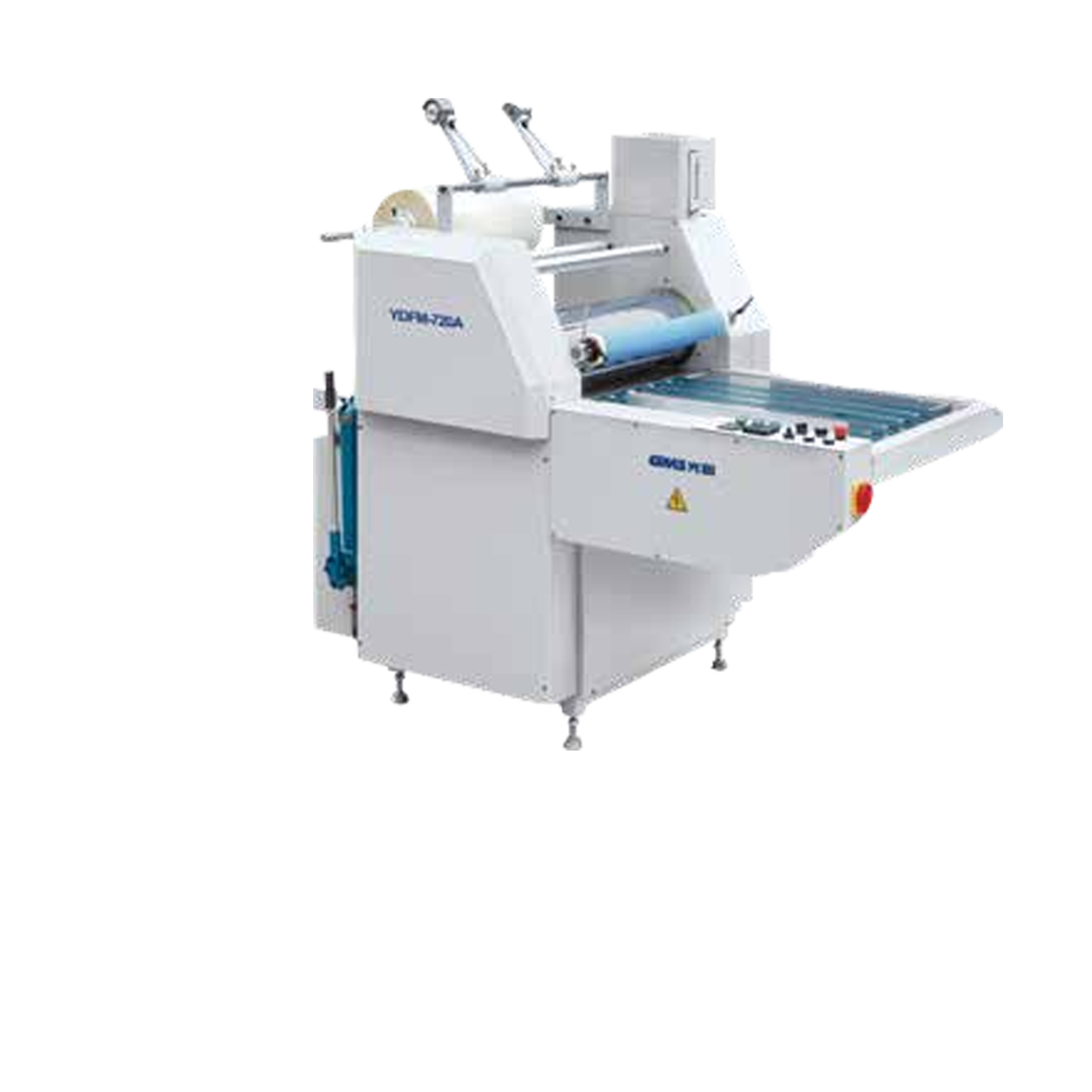

YDFM-720/920 Manual Laminator
INTRODUCTION:
The machine is advanced in design, compact in structure and convenient for use. It adopts manual hydraulic pressuring system to provide big pressure, and has the features of quick temperature rise, quick working speed, low noise and stable running. It gets rid of defects of snowflake spots on deep printing in traditional lamination, reduces production loss, perfects product quality and improves so much working efficiency. And it is an indispensable post-press equipment for modern printing and packing industry.
MAIN SPECIFICATIONS:
| Model | YDFM-720 | YDFM-920 |
| Paper size | Max.600mm | Max.800mm |
| Paper thickness | 105-500gsm | 105-500gsm |
| Laminating speed | 0-30m/min | 0-30m/min |
| Power | 7kw | 8kw |
| Weight | 470kg | 520kg |
| Dimension | 1900x1300x1600mm | 1900x1500x1600mm |
