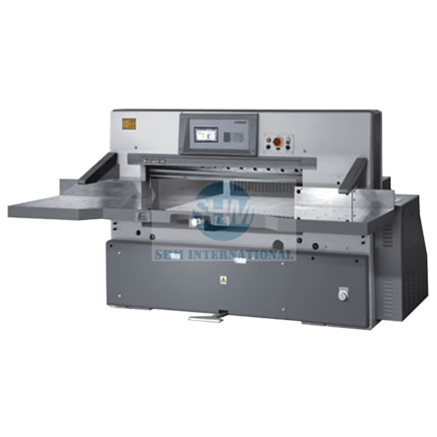

K Series Program Control Paper Cutting Machine
INTRODUCTION:
This model adopts Japan AC digit servo control system,7 inches colorful display screen of resolution rate is 0.01mm, has self-diagnostic function of troubles and displays the operating pattern, It has 100 program units, more than 5000 different cutting position the max paper pushing speed is 5*16m/min. It adopts stronger computer operating. It can memorize store the storage time can be up to 200000 hours above. It has self maintenance to the operating system. Adopt
MAIN FEATURES:
1. Ball lead screw and linear guide-rail makes paper impeller run smooth, low noise, accurate positioning, enhance the cutting precision and speed greatly, prolong the service lift of paper cutter.
2. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table (1000 x 800) is optional.
3. IR photoelectric protection, buttons by two hands safety devices.
4. Safety device for knife bed, overloading protection for cutting, automatic return safety device.
5. Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. The paper is pressed twice by pressure-increased system.
6. Mechanical assistance device for knife replacement makes knife replaced quickly and safely.
7. Equipped with the optical knife alignment to make cutting more convenient.
8. PLC control system.
9. Ejecting device for knife bar.
10. Flat worm speed reducer transmission.
11. Multination language operation interface.
12. Carry on the block programming operation through the figures and diagrams operation manual.
MAIN SPECIFICATIONS:
| Model | 78K | 92K | 115K |
| Cutting width | 780mm | 920mm | 1150mm |
| Cutting depth | Max.780mm | Max.930mm | Max.1150mm |
| Working table length | 1780mm | 1980mm | 2260mm |
| Cutting speed | 45times/min | 45times/min | 45times/min |
| Pressure | Max.30000N | Max.35000N | Max.40000N |
| Weight | 2250kg | 2400kg | 4000kg |
| Dimension | 2100x1400x1950mm | 2250x1400x1950mm | 2550x1600x2150mm |
| Model | 130K | 137K | 155K |
| Cutting width | 1300mm | 1370mm | 1550mm |
| Cutting depth | Max.1300mm | Max.1450mm | Max.1550mm |
| Working table length | 2410mm | 2590mm | 2800mm |
| Cutting speed | 45times/min | 45times/min | 42times/min |
| Pressure | Max.40000N | Max.45000N | Max.55000N |
| Weight | 3860kg | 4150kg | 5200kg |
| Cutting width | 2600x1530x1950mm | 2800x1600x2150mm | 2960x1650x2150mm |
| Model | 166K | 186K |
| Cutting width | 1660mm | 1860mm |
| Cutting depth | Max.1660mm | Max.2000mm |
| Working table length | 2830mm | 3270mm |
| Cutting speed | 42times/min | 40times/min |
| Pressure | Max.60000N | Max.65000N |
| Weight | 5300kg | 6800kg |
| Cutting width | 3150x1600x2150mm | 3400x1820x2300mm |
| Model | 220K | 260K |
| Cutting width | 2200mm | 2600mm |
| Cutting depth | Max.2200mm | Max.2600mm |
| Working table length | 3550mm | 4000mm |
| Cutting speed | 33times/min | 30times/min |
| Pressure | Max.70000N | Max.70000N |
| Weight | 10200kg | 13000kg |
| Cutting width | 3900x1900x2700mm | 4000x2200x2200mm |
