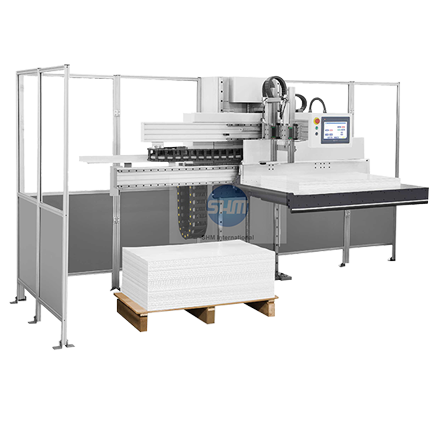

LD Series Loader Machine
MAIN FEATURES:
1. The machine has paper feed automatic and paper loading functions , can deliver the kinds of the cutting products to the place you want quickly, at the same time, loading them to the base table you want.
2. The process of feed and loading, accurate , efficient , reduce labor intensity , improve labor efficiency and increase the working precision.
3. The machine working table with air balls devices , the process of up and down by the flat worm gear drive ball lead screw , guide-rail , ensure the worktable smooth and accurate.
4. The worktable move around driven by a worm gear reducer drive rack, the guide-rail slider to make table moving easily.
5. This machine is equipped with Japan, Taiwan pneumatic components, France, Germany, Japan, Korea electric components, PLC controller can monitor all the electrical and mechanical section, adopt NSK bearing of low maintenance.
MAIN SPECIFICATIONS:
| Model | LD130 | LD145 |
| Loading paper size | Max.900x1260mm | Max.1100x1500mm |
| Pile height | Max.1400mm | Max.1400mm |
| Load | Max.200kg | Max.300kg |
| Power | 3kw | 4kw |
| Weight | 1200kg | 1900kg |
| Dimension | 2700x2100x2150mm | 3200x1200x2150mm |
| Model | LD165 | LD188 |
| Loading paper size | Max.1220x1670mm | Max.1350x1880mm |
| Pile height | Max.1400mm | Max.1400mm |
| Load | Max.400kg | Max.500kg |
| Power | 4kw | 4kw |
| Weight | 2100kg | 2300kg |
| Dimension | 3800x2450x2150mm | 4200x2600x2150mm |
