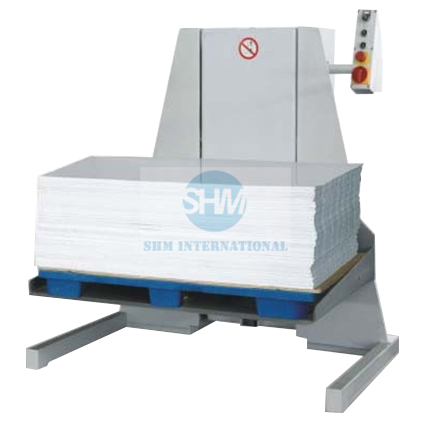

LG Series Lifter
MAIN FEATURES:
1. The lifter is an assistant equipment of the paper cutter, it can be equipped with the paper cutter individually or be composed in the produce line what suitable for all kinds of cutting technology process.
2. It adopts hydraulic driving system and be controlled by IR photo-electric switch which make sure the paper pile kept in the height chosen in advance automatically.
MAIN SPECIFICATIONS:
| Model | LG450-1 | LG1000-4 | LG1000-6 | LG1500-8 |
| Pallet size | Max.620x840mm | Max.900x1250mm | Max.1060x1500mm | Max.1230x1650mm |
| Paper size | Min.600x800mm | Min.880x1220mm | Min.1050x1220mm | Min.1210x1620mm |
| Lifting height | Max.820mm | Max.820mm | Max.820mm | Max.820mm |
| Loading weight | Max.450kg | Max.1000kg | Max.1000kg | Max.1000kg |
| Power | 1kw | 2.2kw | 2.2kw | 2.2kw |
| Weight | 500kg | 700kg | 800kg | 1100kg |
| Dimension | 1300x1250x1850mm | 1700x1550x1850mm | 2000x1700x1850mm | 2200x1900x1850mm |
